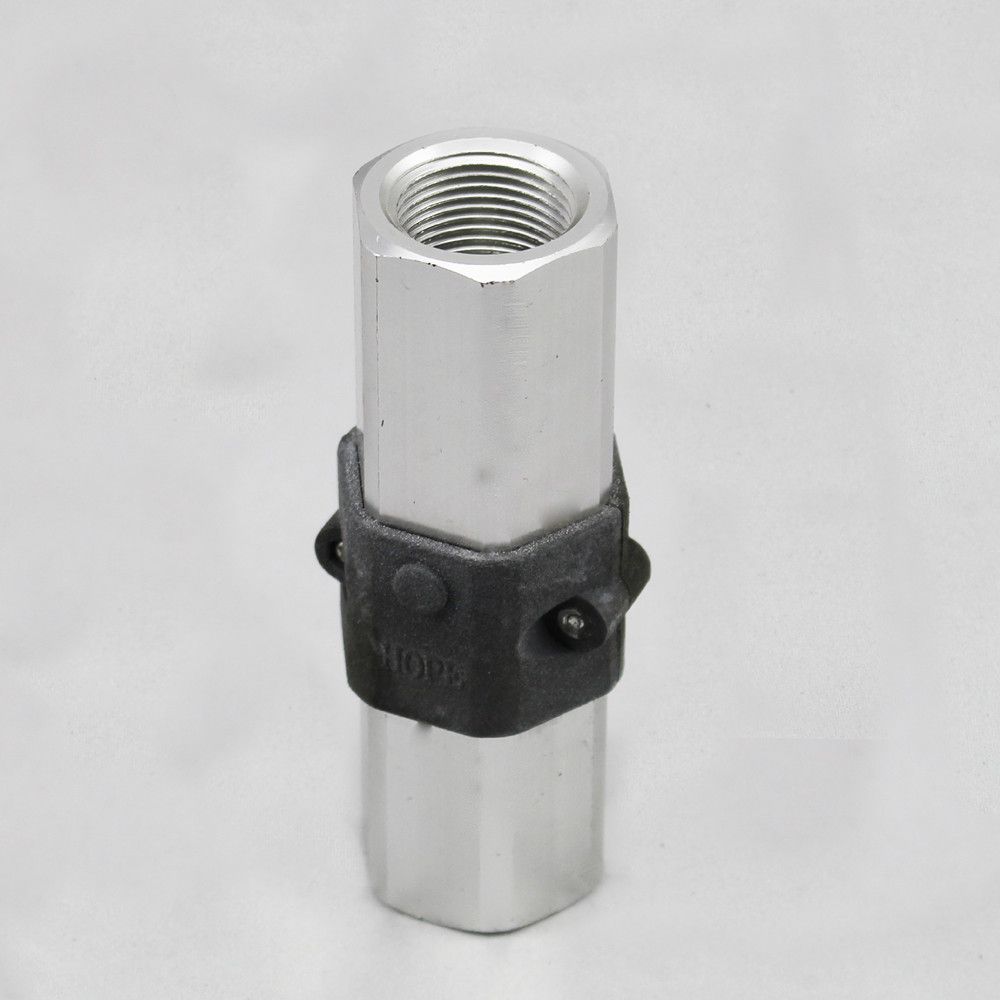

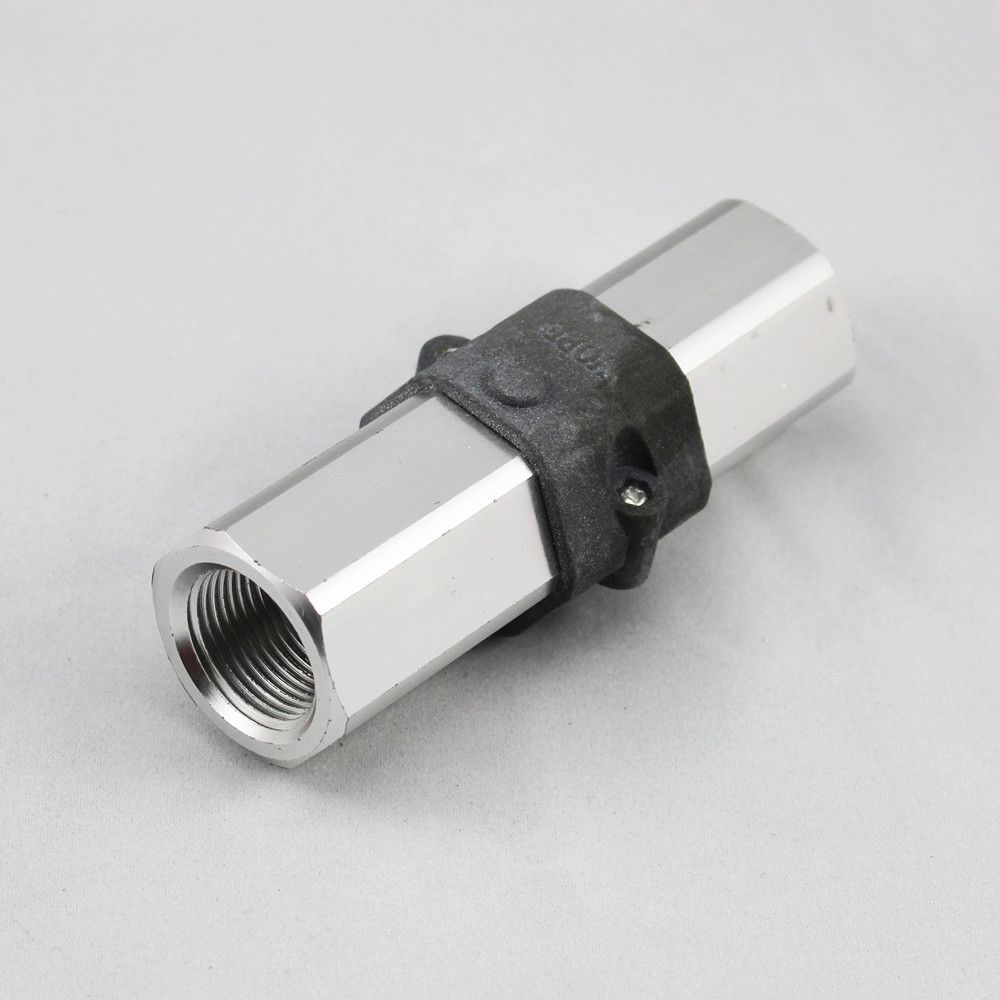

Opw 3/4 Safety Bsp NPT Hose Breakaway Coupling Valves
Specifications:This Breakaway is designed to be installed on fuel dispensing hoses, and will separate when subjected to a designated pull force. The dual valves seat automatically, stopping the flow of fuel and limiting any fuel spillage, while protecting the dispensing equipment.Feature:1. Pull force - the AC-7 will break away with a pull force less than 300 lbs.
2. Certainty of operation - designed to be replaced after separation, instead of reassembled, to protect against reassembly errors.
3. Unique double-poppet design - features low pressure drop.
4. Low pressure drop - the integral check valve design allows for minimal pressure drop for faster, high-volume fill-ups.
5. Design Working Pressure - OPW products are designed to work at 50 PSI (3.45 bar) maximum pressure.
We sell Top Quality Products at Wholesale Prices. All our items are thoroughly researched & tested prior to being offered.
|
Model |
AC-7 |
|
Thread |
BSP/ NPT |
|
Diameter |
3/4" & 1" |
|
Max.pull |
3/4":250LBS ± 0.5% / 1":300LBS ± 0.5% |
|
Flow Range |
3/4":0-60L/min / 1":0-90L/min |
|
Package |
100pcs/carton |
|
Weight |
3/4":280g / 1":320g |
|
Dimension |
520*280*280mm |
