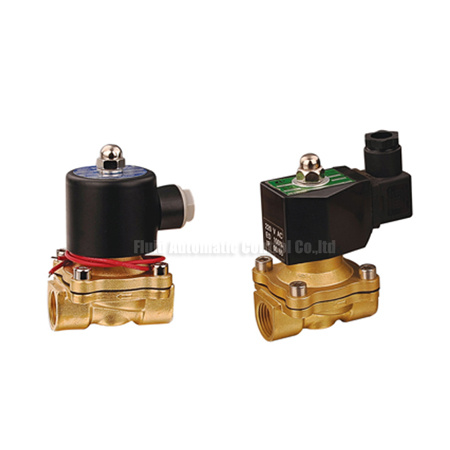

*2W Series solenoid valve flow aperture size 16mm, 20mm,25mm, 35mm,40mm,50mm
*Two position two way directly acting
*Body material Brass
*Port Size G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”
*Seal with NBR,EPDM,VITON For Option
*Water-Proof coil or explosion-proof available
ORDERING CODE |
| 2W | 160 | 15 | NC | S | E | AC220V |
| Type | Aperture Flow Rate | Port size | Initial State | Coil type | Seal Material | Voltage |
| 2W:2W Series Two Position Two Way Solenoid valve | 160:16mm | 10:G3/8" | NC:Normal Close | Blank:Round Coil | Blank:NBR | DC12V |
| 15:G1/2" | A:Water-Proof |
| 200:20mm | 20:G3/4" | DC24V |
| 250:25mm | 25:G1" | H:Manual Operator | E:EPDM(For Steam) | AC110V |
| 350:35mm | 35:G1-1/4" | NO:Normal Open | S:Square Coil | AC220V |
| 400:40mm | 40:G1-1/2" | Z:Explosion-Proof | V:VITON (For High Temperature and Vacuum) | AC380V |
| 500:50mm | 50:G2" | AC24V |
| Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Working Medium | Air,Water,Oil,Gas |
| Motion Pattern | Direct Drive Type |
| Type | Normal Close Type |
| Aperture of Flow Rate(mm) | 16 | 20 | 25 | 35 | 40 | 50 |
| CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Joint Pipe Bore | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ |
| Operation Fluid Viscosity | 20 CST(Below) |
| Working-pressure MPa | Air0~0.7MPa; Water0~0.5MPa; Oil0~0.5MPa |
| Max. Pressure Resistance MPa | 1 |
|
| Operating Temperature ºC | -5 ~ 80ºC |
| Voltage Range | ±10% |
| Material of Body | Brass (Material of stainless steel need special explain) |
| Material of Oil Seal | NBR,EPDM or VITON |
