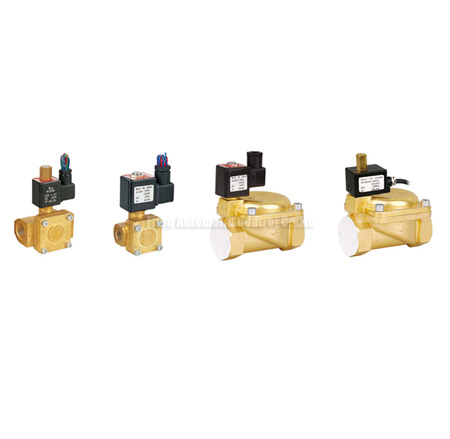

*0927,0955 series Herion type solenoid valve Orifice size 8mm,10mm,12mm,20mm,25mm,32mm,40mm,50mm
*Two position two way directly acting
*Body material brass
*Port Size G1/8”,G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”
*Seal NBR,EPDM,VITON for option
SPECIFICATION |
| Model | OrificeSize(mm) | OperatingPressure(MPa) | Operating Temperature (ºC) | EffectiveSection(mm ²) | Voltage | a | b | c | e | h | r |
| 0927000 | 8 | 0.071.6 | –5 ~ 80ºC for NBR 15-150ºC for VITON EPDM | 20 | AC220V,AC110V DC24V | 47 | 33.5 | 22 | 55 | 113 | G1/8 |
| 0955105 | 101 |
| 0927100 | 10 | 40 | 113 | G3/8 |
| 0955205 | 101 |
| 0927200 | 12 | 60 | 113 | G1/2 |
| 0955305 | 101 |
| 0927300 | 20 | 110 | 66 | 45.5 | 30 | 81 | 130 | G3/4 |
| 0955405 | 118 |
| 0955400 | 25 | 190 | 91 | 130 | G1 |
| 0955505 | 118 |
| 0955500 | 32 | 0.11.6 | 300 | 92.5 | 47 | 33.5 | 132 | 157 | G1-1/4" |
| 0955605 | 145 |
| 0955600 | 40 | 400 | 157 | G1-1/2" |
| 0955705 | 145 |
| 0955700 | 50 | 500 | 112 | 55 | 39.5 | 160 | 164.5 | G2" |
| 0955805 | 176 |
