1. Single stage construction.
2. Forged brass body & bonnet for maximum strength.
3. Sintered metal inlet filter to trap impurities.
4. Accurate regulator for gas flow.
5. No soldered joints, for easy maintenance.
6. Regulator output pressure set to 0.35Mpa.
7. Smooth adjustment, with high precision.
8. Inlet and outlet connection will be supplied to suit your requirement.
[The main material]
Regulator body: C3771BE
Regulator cover: C3771BE
Seat: PTFE
Diaphragm: NEOPRENE
|
Model |
For gas |
M aximum input pressure |
Outlet pressure |
Inlet gauge |
Outlet gauge |
Inlet connection |
Outlet connection |
|

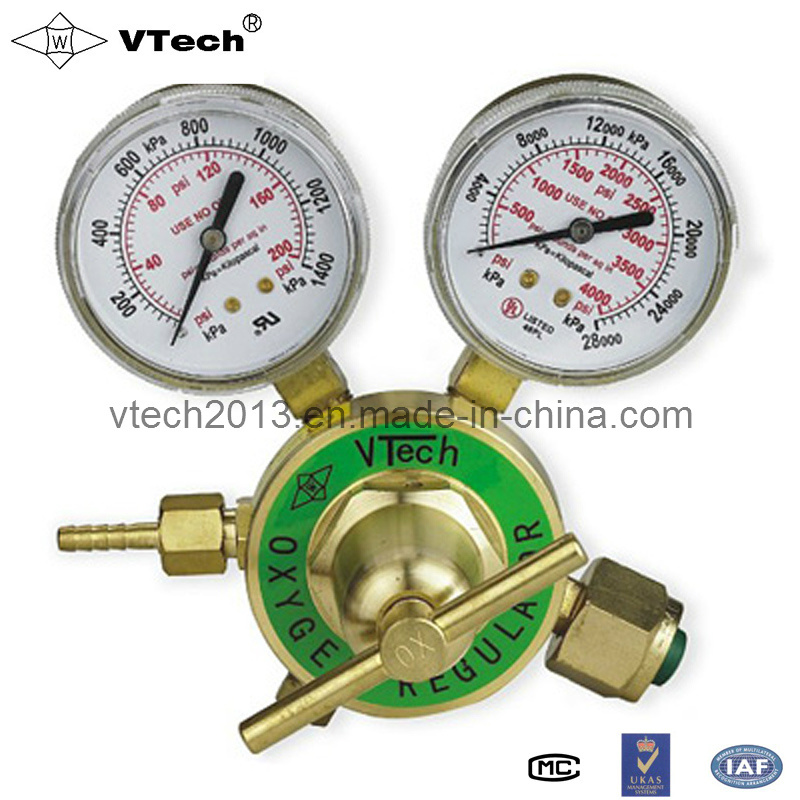

W-205-OX |
OXYGEN |
15MPa |
0.03~0 . 85MPa |
400Psi / 2800Kpa |
200Psi / 1400Kpa |
G5 / 8-14 " -RH(F) |
M16-1.5RH ( F ) |
|
W-205-N 2 |
NITROGEN |
15MPa |
0.07~1 . 4MPa |
400Psi / 2800Kpa |
200Psi / 1400Kpa |
G5 / 8-14 " -RH(F) |
M16-1.5RH ( F ) |
