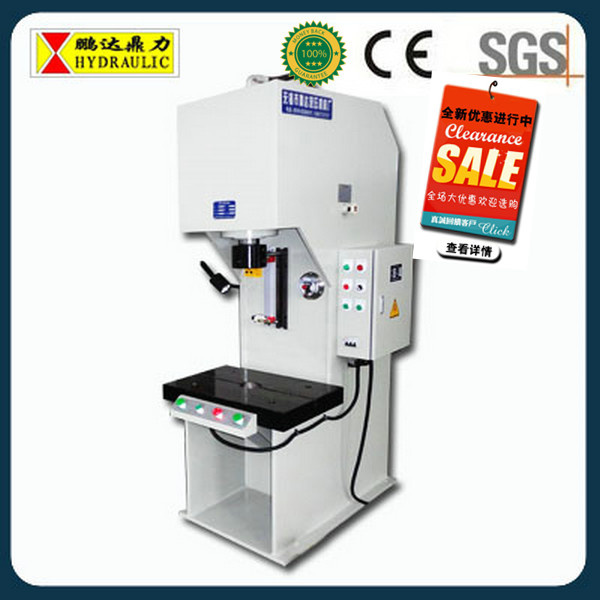

Machine name: C-frame hydraulic press
Type: YP41
Brief introduction
1. Verical C-frame/type structure, the machine is melded by steel plate built-in hydraulic system.
2. Simple structure aend easy operation, the machine can dinished pressing, straightening, simple stretching etc.
3. The slide adopt guiding rod to prevent it rotating.
4. Two hands buttons and scram and button.
5. Maintainability because of the black and top doors.
Application
1. Motor industry 2. Auto parts industry
3. Bearing 4. Internal combustion engine
5. Textile machine6. Spring
7. Bush 8. Others
Attention
1. Please use 46# Anti-wear hydraulic oil, and change the oil once a month.
2. It's not allowed to overpressure when working.
3. Please pay attention of the hands and body when pressing.
4. Stop immediately when the machine falue.
|
Type |
Unit |
|
10T |
25T |
40T |
100T |
200T |
315T |
500T |
|
Nominal force |
KN |
|
100 |
250 |
400 |
1000 |
2000 |
3150 |
5000 |
|
The maximum working pressure of the fluid |
Mpa |
|
8.1 |
20.3 |
22.6 |
26.3 |
25 |
25 |
25 |
|
The maximum opening |
mm |
A |
500 |
600 |
700 |
800 |
900 |
900 |
900 |
|
The maximum stroke of the slider |
mm |
B |
300 |
350 |
400 |
500 |
500 |
500 |
500 |
|
Slider's down velocity |
mm/s |
|
48 |
48 |
33 |
40 |
19 |
15 |
15 |
|
Slider's return velocity |
mm/s |
|
81 |
100 |
73 |
120 |
80 |
55 |
53 |
|
throat depth |
mm |
C |
250 |
280 |
320 |
350 |
380 |
400 |
450 |
|
The size of the working platform |
Front,Rear |
mm |
E |
480 |
500 |
550 |
600 |
700 |
700 |
750 |
|
Left,Right |
mm |
D |
550 |
650 |
700 |
800 |
900 |
900 |
900 |
|
The height of the working platform to the surface of the floor |
mm |
F |
710 |
710 |
700 |
730 |
750 |
850 |
900 |
|
The diameter for cutting hole |
mm |
|
80 |
100 |
100 |
120 |
120 |
120 |
120 |
|
Motor power |
KW |
|
4 |
5.5 |
5.5 |
11 |
11 |
15 |
22 |
|
The size of the machine |
Front,Rear |
mm |
H |
1100 |
1280 |
1400 |
1655 |
1630 |
1800 |
1800 |
|
Left,Right |
mm |
G |
680 |
755 |
800 |
875 |
1000 |
1000 |
1000 |
|
Height above the floor |
mm |
I |
1950 |
2100 |
2250 |
2700 |
3000 |
3500 |
5000
|
Wuxi Pengda Hydraulic Machine Factory is specialized in hydraulic press machine. We are located in a beautiful and strong economy city and near Shanghai.
We are the largest company in China Hydraulic Press Town, founded in 2003, with 30, 000 square meters worrkshop. We have 5 best engineers and over 30 technological elite, all of them have good technological skills and rich experience. We have advanced design capabilities, strong technical force and rich experience in installation and debugging. Company has a strong processing power, with all sorts of lathe machine, milling machine, planing machine, grinding machine, floor type boring and milling machine, horizontal boring machine, plano-boring and milling machine, numerical controlled flame cutting machine, CNC milling machine production equipment. Complete testing process guarantee each products working well after leave factory.
Our products have 11 series and more than 100 kinds. Single column hydraulic presses, four-column hydropresses, hydraulic rectifying machines, motor press mounting machines, motor aluminum casting machines, digital controlling hydropresses, plastic product hydropresses, thin plate stretching machines, universal hydropresses and desktop hydraulic presses are Our main products. It is mainly applicable in various motor industries, such as thin plate stretching, powder metallurgy, electronic meters, plastic products and motorcycle and automobile manufacture etc. We got CE, ISO9001, ISO14001 certificate, and till today, our products spread most China city, Europe, South Africa, Middle East, South America and Southeast Asia etc.
Hydraulic press, of course Pengda! We are looking forward to cooperation with you!
