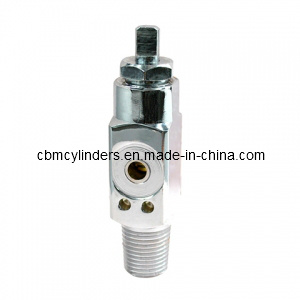

Pin Index Gas Valve(Without Toggle), Advanced Medical Pin Index Valves, Medical Pin Index Cylinder Valve Cga870W, Medical Pin Index O2 Valves With TAPER THREADS for Medical Oxygen Breathing Cylinders.
Specs of medical CGA870 Pin Index Cylinder Valves:
-Mat: Brass;
-Axial connection type valves CGA870-3Z;
-DN: 2.5 mm; W. P: 15Mpa;
-Outlet Thread: Yoke Connection;
(WP: 1800psi; BP: 1800psi/5000psi )
-Inlet Thread: PZ27.8;
-Manufacturing Std: CGA, GB, and etc.
*Notes:
-a). Besides, PZ27.8, PZ19.2, Din477 W28.8 25E, Din477 W19.8 25E, 3/4-14NGT, BS1" 341, JIS B8246, V2, M18*1.5 can be satisfied(Threads can be customized);
-b). CGA870 Pin Index Valves sereis arre available in wrench, toggle, or handwheel type.
Why Choose Us?
(1) Our branch factory specializing in manufacturing gas valves for nearly 20 years;
(2) Most advanced equipments and strict quality control in China;
(3) Customized OEM products are available;
(4) Prompt delivery time: 20-25days after receipt of advance payment;
(5) Patient explanation before order and timely after-sale service;
(6) Persistent improvement on service and products.
Our branch factory valves is specialized in the production of valves for various gas cylinders. It mainly produces Gas Cylinder Valves, gas pipe valves, Industrial Gas decompressors, civil Liquid Gas boosters, Brass Ball Valves and etc. They are made from brass. We can design and manufacture most Oxygen Valves in accordance with your demand(drawing).
Should you have any interests or some more info needed on our manufactued GAS VALVES, just pls feel free to contact us!
|
Model |
CGA870W |
|
Product Name |
Medical Oxygen Cylinder Valve W/O Toggle |
|
Applicable Media |
Oxygen |
|
Nominal Working Pressure |
15Mpa |
|
Nominal Bore |
1.5mm |
|
Outlet Thread |
φ7 Clip2-φ4.7Dowel |
|
Connecting Thread of The Cylinder |
PZ27.8 |
|
Safety Device Temperature or Pressure |
Steel Cylinder 21~23.2 |
|
Aluminum Cylinder 22.9~25.5,73°C±3°C |
