Quick Details
| Standard or Nonstandard: | ASME B16.1 CLASS 125\ASME B16.5 CLASS 150\ASME B16.47\BS EN 1092 PN6/P | Structure: | Wafer ,LT,Double Flange,U Type | Pressure: | Medium Pressure |
| Power: | Aluminum Handle,Worm Gear,Pneumatic and Electric actuator | Material: | CI, DI, WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, C95400, C95800, | Temperature of Media: | Medium Temperature |
| Media: | freshwater\ sewage\seawater\air\vapor\food\oils\medicine\ alcohol\salt | Port Size: | DN40-DN1600 | Place of Origin: | hebei, China (Mainland) |
| Model Number: | VBFV-005 | Brand Name: | LIQIAN | Body: | CI/DI/WCB/ALB/CF8/CF8M |
| Disc: | DI/ALB/Rubber lined Disc/CF8/CF8M// 1.2501/1.4529/ and so on | Stem: | 416/304/316/431/17-4PH | Weight: | Heavy duty |
| Certification: | CE ISO | Quality: | High Qaulity | Color: | As Per Customer's request |
| Type: | Wafer/doulbe flange/U type/LT |
Packaging & Delivery
| Packaging Details: | Wooden cases |
| Delivery Detail: | 40 DAYS |

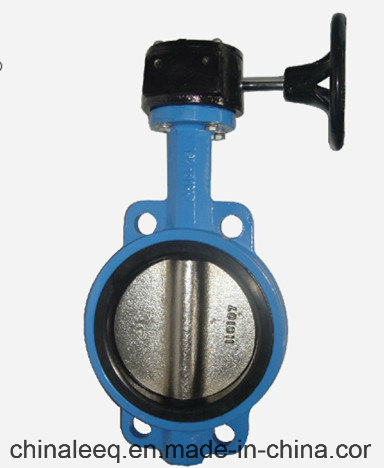

Without Pin Wafer Handle Butterfly valve
Features
-Simple and compact construction, quick 90 degree on-off operation, Minimized operating torque, energy saving. -Bubbles-tight sealing with no leakage under the pressure test. -The connection of driven part conforms to ISO 5211. -Wide selection of materials, applicable for various medium. -The valve body and disc are accurately machined which results in low operating torque and long service life and reliability
General Applications
-Chemical and petrochemical in-Chemical and petrochemical industries.
-Water and wastewater technology.
-Pneumatic materials handling technology.
-Shipbuilding.
-Power generation industry.
-Food industry.dustries.
-Water and wastewater technology.
-Pneumatic materials handling technology.
-Shipbuilding.
-Power generation industry.
-Food industry.
| Size | DN40-DN1600 |
| Design | BS5155, API609, EN 593 ,EN1092,ISO5211 |
| End flange | DIN2501 PN10/16, BS4504 PN10/16, ASME B16.1 125LB & 150LB,, JISB2220 10K and so on. |
| Face to face | DIN558-1 API609 DIN302 ISO5752 BS5155 |
| Testing | EN1266-1 ISO5208 API598 |
| Top flange | ISO 5211 |
| Normal pressure | DN40-DN600 PN1.0/1.6MPa (150/200PSI) DN700-DN1200 PN1.0MPa (150PSI) |
| Body | CI/DI/WCB/ALB/CF8/CF8M |
| Disc | DI/ALB/Rubber lined Disc/CF8/CF8M// 1.2501/1.4529/ and so on |
| Stem | 416/304/316/431/17-4PH |
| Seat | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White NBR/White EPDM/EPDM (NSF)/PTFE/FKM/CSM |
| Temprature | -45c~150c |
| Feature | Small in size, light in weight and easy maintenance, it can be used as a device to cut-off or regulate |
| Apply | Fresh water, sewage, sea water, air, vapor, food, medicine, oils. acids, alkalis, salt etc. |
Company profile
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001:2008 quality management system, ISO 14001:2004 environmental management system, and OHSAS 18001:2007 Occupational Health & Safety System, also with CE, API, KS and Gost certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. and the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.
To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
