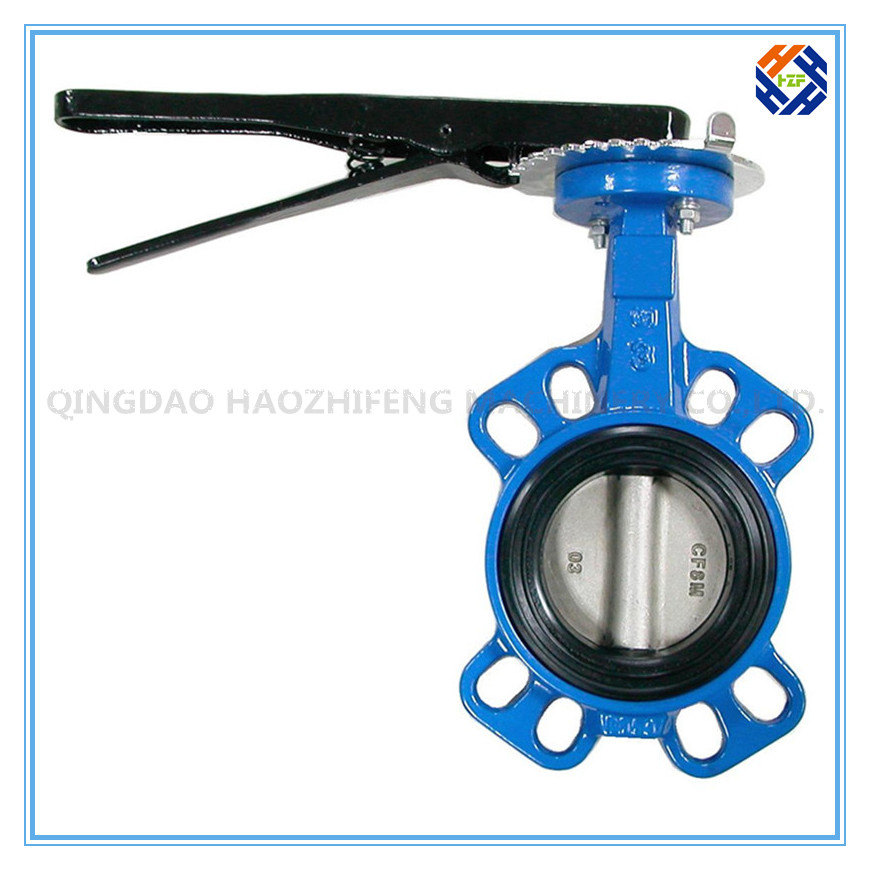

Pip Fittings for Butterfly Valve -001

Pip Fittings for Butterfly Valve -001
Price: US $ 12-15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P

Specification:


Size
  • 4 in - 8in X 6in (25 mm - 200 mm X 150 mm)
Pressure ratings600
Operating Temperatures
  • From -20° F to 220° F (-29° C to 104° C)
Standard Features
  • Carbon steel body
  • Carbon steel and stainless steel ball/stem
Industry Compliance
  • ANSI B16.34
  • API 607 fire-test specification



butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.
Prod Model: HZF-080
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 4in-8in
Delivery Date: 15-30 Days
Connection Form: Flange
Structure: Double-Eccentric Sealing
Seal Form: Auto Sealed
Work Pressure: Low Pressure (',Pn<1.6mpa)
Working Temperature: Normal Temperature (',-40??C
Material Of Seal Surface: Soft Sealed
Application: Household Usage
Qingdao Haozhifeng Machinery Co., Ltd is a professionally managed hardware company with more than10 years experience in exporting business. It has five Branches which specializes in Casting parts, Auto parts, Forging parts, Stamping parts, and Machining parts. The company owns two factories besides of 100 close cooperated subcontractors. We have the capability to ship up to 80 20FT containers per month to Europe and the United States.

ISO9001, achieved in 2008, ensures that orders are carefully and expertly handled by our team of graduate engineers who understand the importance of timetable, the quality of the goods and the quality of the packing.

Our administration department is very efficient so from the time you order until the time you receive the goods we monitor the order progress and give our customers regular feedback.

You can order the complete range and get one stop service from us, as we have an advanced warehouse storage system.

Choosing Qingdao Haozhifeng as your supplier will be a good choice for you just as it is for our many exisiting international customers
