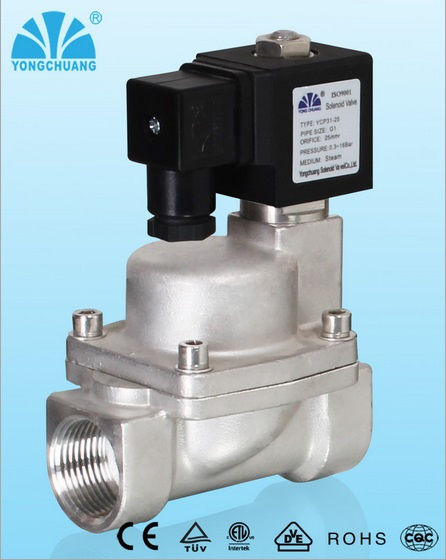

Piston High Pressure Solenoid Valve (YCH21)

Piston High Pressure Solenoid Valve (YCH21)
Price: US $ 31-49/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
YCH21 series normally closed high pressure solenoid valve,0.5-50BAR

Characteristic

1.pilot piston structure with less power   comsumption for  long time working
 2.Applied to pressure system opened from 0.05 Mpa
 3.Life span can be over 1 million times

Medium

Air, water etc.

Temperature

NBR:   -10°C to 80 °C
EPDM: -10°C to 120 °C
VITON:-10°C to 150 °C

Pressure

0.5-50 bar

Port size

3/8'-1'

Port thread

G,BSP,NPT

Orifice

15mm

Voltage

DC-12V,24V
AC-24V,120V,240V/60HZ,110V,220V/50HZ

Tolerance

±10%

Coils

S91B,22VA(AC),17W(DC) IP65,100% ED

Special coils

Ex coil: AC220V,DC2V;
Nass coil0543;
Latching coil:DC6-24V as requested

Material

Body- brass,stainless steel
Seal- NBR,EPDM,VITON
Amature tube-stainless steel 304
Plunger-stainless steel430F
Stop-stainless steel 430F
Springs-SS304
Shading rings- stainless steel 304


Office view:
17 years experience in solenoid valves manufacturering.Now making ODM for ASCO and PARKER.10000 square meters factory, 30% customized products.

 Maching and testing equipment:


Our Services
 Why choose us ?
  7*24 online EMAIL service!
1.We are OEM maker of solenoid valves for ASCO and Parker .
2.We have solenoid valve expert with 18 years experience in solenoid valve designing.
3.We are Alibaba Assessed 8 years Gold Supplier.
4. We have more than 2000 kinds of solenoid valves with more than 10000 square meters factory.
5.100% QC inspection Before Shippment.
6. CE/RoHS CQC approved products.


Packaging & Shipping
 What is our shipping?
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time: 2-5 days for samples; 15-25 days for batch goods.


PAYMENT TERMS:
  What is our payment terms?
1. Payment: T/T, Western Union, LC; 30% deposits; 70% balance before goods ready.
2. MOQ: 1PC
3. Warranty : one and half years
4. Package Informations: The volume of the box is 31cmx21cmx25cm

FAQ

Q1: What is the Warranty for the solenoid valves?
A1:  For the valves,we have one and half year warranty.If any quality problems on our side occured in this period ,we will make  replacement.

Q2:: What is NO and NC?
A2: NO stands for normally open, that is , valve keeps open without power.If connect  it with power, the valve will get closed.NC     stands for normally closed,that is valve keeps closed without power.If connect  it with power, the valve will get open.

Q.3: What is the assembly way of solenoid valves?
A.3  we suggest to make horizontal installation to enlarge life time,but it can be vertical installation if have special request.

Q4:Is there cheap shipping cost to import to our country?
A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.

Q5:Can we make customized product?
A5: Yes, we are good at making customized products.More than 30% of our products are customized products. We have successfully customized for customer from various fields from USA,Norway.Australia, Germany ect.


Send your Inquiry Details in the Below, Click "Send" Now!


Ms.Rachel


Tel: 86-574 62507202
Cell: 86-15888537478

Prod Model: YCH21
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 3/8-1'
Structure: Direct Lifting Diaphragm
Life Time: I Million Times
Pressure Range: 0.5-50bar
Gurantee: One and Half Year
Place Of Origin: Ningbo, China
Type: Pilot Operated
Connection Form: Thread
Valve Structure: Pilot Piston Structure
Application: Household Usage
Power Supply: DC & AC
Material: Brass and Stainless Steel
