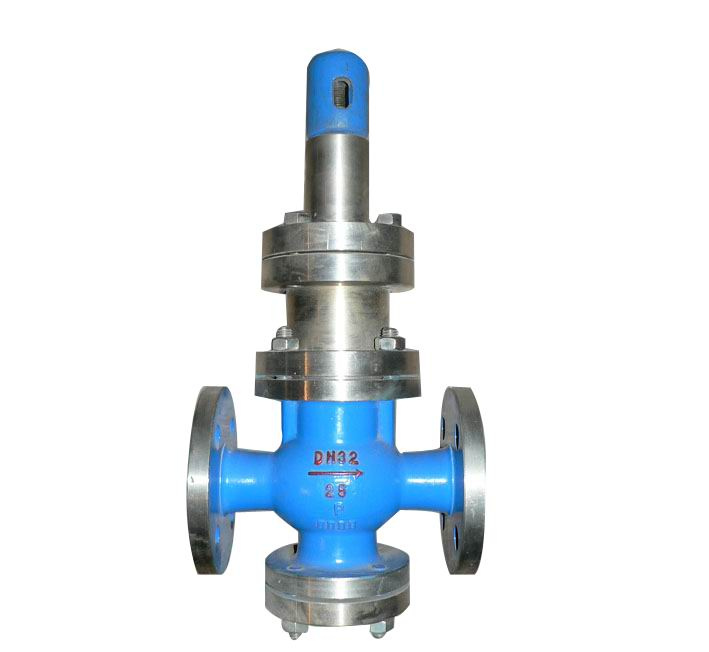

Piston Steam Reducing Valve (Y43H/Y)

Piston Steam Reducing Valve (Y43H/Y)
Price: Negotiable
Trade Terms: Sea/Land transportation
Min Order: 1
Product name: Piston steam reducing valve
Product type: Y43H/Y
Product pressure: Class150-600Lb
Product size: DN 15-600mm
Product group: Reducing valve series
Product Information
Y43H/Y Piston Steam  reducing valve
Main technical parameter and performance index
Nominal pressure (Mpa)1.62.546.41016
Shell test pressure (Mpa)*2.43.7569.61524
Seal test pressure (Mpa)1.62.546.41016
Highest inlet pressure Mpa)1.62.546.41016
Outlet pressure scope(Mpa)0.1-1.00.1-1.60.1-2.50.5-3.50.5-3.50.5-4.5
Pressure characteristic deviation(Mpa) Δ P2PGB12246-1989
Discharge characteristic deviation(Mpa)P 2GGB12246-1989
Smallest differential pressure(Mpa)0.150.150.20.40.81
Leakage quantityGB12245-1989














Shell experiment not including diaphragm, roof panel
Main  parts materials


parts nameparts materials
body Bonnet  lower headWCB
seat  valve seat 2Cr13
cylinder line 2Cr13/25(hard plating)
Piston 2Cr13/Cuprum Alloy
piston ring alloy cast iron
Pilot seat     Pilot Stem 2Cr13
 1Cr18Ni9Ti
 Diaphragm



Main valve Spring 50CrVA
Pilot valve Main Spring50CrVA
adjusting Spring60Si2Mn

out-form dimensions (PN1.6-4.0)
DNout-form dimensions

LHHl

1.6/2.5MPa4.0MPa

1516018029590

2016018033098

25180200330110

32200220330110

40220240345125

50250270345125

65280300350130

80310330385160

100350380385170

125400450400200

150450500415210

200500550475240

250650525290

300800580335

350850620375

400900660405

450900730455

500950750465


out-form dimensions (PN6.4-16.0)Unit : mm


 out-form dimensions
DN
 LHHl

 6.4MPa10.0/16.0MPa

15180180305105

20180200340105

25200220340120

32220230340120

40240240355135

50270300355135

65300340360140

8033036039517

100380400185

125450415215

150500430225

200550495260

250650545310

300800600355

350850640395

400900690435

500950 780495





Prod Model: Y43H/Y
