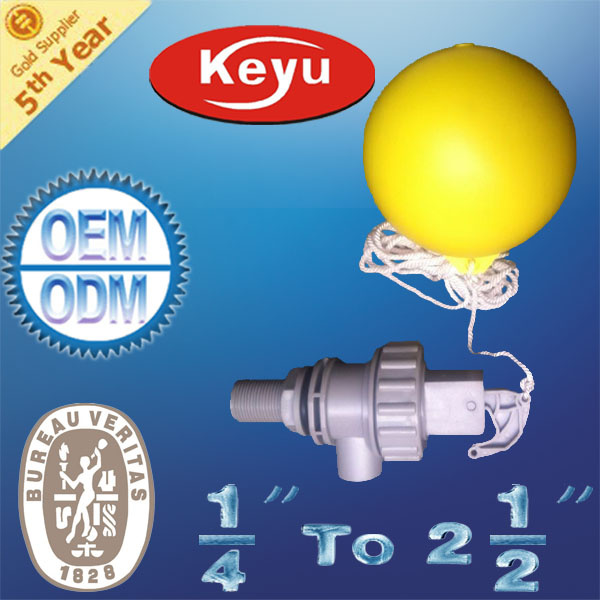

Deep Trough Tank Quick Stop Floating Valve (Armless Ball Cock)
Valve body
ABS plastic
Stem ABS Plastic
Plug NR
Float ball PE
Rod ABS Plastic
Working Water Pressure 0.1-1.2mpa
Working Temp - 35 C to + 70 C
Advantages:
This ball cock adopts the autolock theory to fasten the water flow rate, less control strength need for switching water, its max water pressure can be 1.2Mpa, mainly installed in home use water tank, livestock and cooling tower etc. And we are very pleased to provide samples for customers to test.
Trough Tank Quick Stop Floating Valve are usually used in some big and deep water containers. It can be used in water tower, livestock farm and so on. It has two ways to install: Level and vertical, which are also called horizontal type and vertical type. As there are two holes at the head of valve body. You can put the line through different holes to achieve horizontal or vertical installation. And the other end of line tied to the hole of float ball.
Working principle:
1. As the water fill in water tank, the floats rise and up to the settled water level, then the valve will be closed by the line pulling force.
2. As the water level drop, tension will reduces between floats and valve body, then the spring which in the valve body forces the valve open, and the water fill in tank again at this time.
Chongqing Yuhui Keyu Machine Electricity Equipment Corp Ltd engages in Research and develop new style float valves and other air cooling equipments. With the application of high-tech products more widely. We are using innovative technology, developed a new type of plastic level control valve (floating ball valve) adopting the theory of self-locking differential pressure. It has good performance features such as long lifetime, less abrasion, corrosion-resistant. Non-polluting and quicker water flow rate characteristics, significantly reduce the custmers' cost accordingly.
It is the product advantages over the existing copper valves, stainless steel valves are difficult to match it. This product is currently selling arround the world, installed in the cooling towers, evaporative coolers, water storages and other environmental treatment area. Especially for high and low water tanks, cooling towers of water level controling, universal regulatory function of the products, Suitable for installing in all kinds of different angles in the water tanks, and it have been shipped to many countries of the world.
To underline the idea of protection of patent intellectual property, the Company has applied for the product a number of patent protection. This product has now been adopted by the Quality and Technical Supervision Chongqing "sealing performance" and "Body strength" excellent grade test. Its superior performance, reliable product quality so that we can have confidence with any similar-size-fits-floating ball valve comparable.
Working in line with the business principle of achieving mutual benefits with clients, we welcome customers around the world to take a look at our website or contact us directly for more details. We look forward to having the opportunity of becoming your supplier in the near future.
