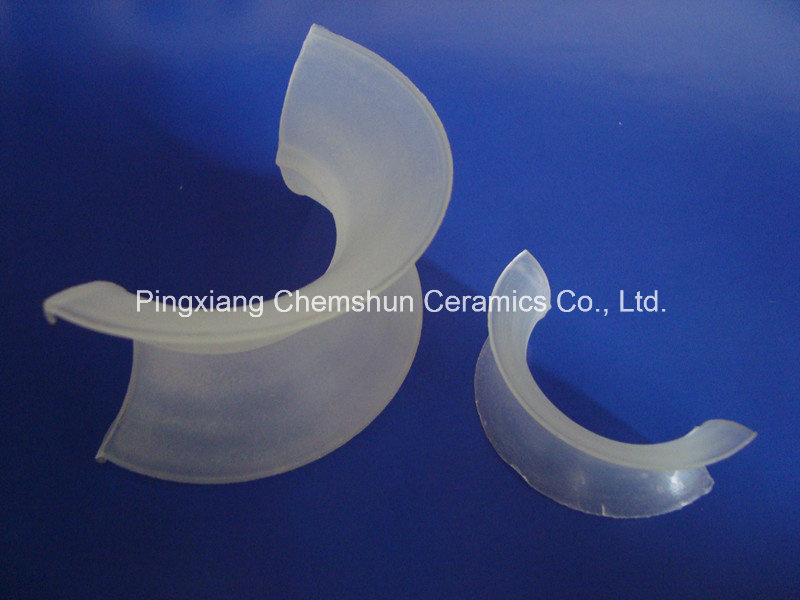

Plastic Intalox Saddles/Plastic Random Packing

Plastic Intalox Saddles/Plastic Random Packing
Price: US $ 200cubic meter
Trade Terms: FOB,CFR,CIF
Min Order: 1cubic meter
Pay Type: L/C,T/T
Plastic Intalox Saddles -Chemical Random Packing

Intalox Saddles
Material: PP, PVC, CPVC, PVDF
Size: 25mm, 38mm, 50mm, 76mm

Plastic Intalox saddles are used in corrosive applications with low to moderate operating temperature and can offer economic advantage over metal material. Where temperature permits, plastic random column packing performs better than ceramic random column packing and are often less expensive than metal random column packing, particularly when special metal and alloy are required. Consequently, plastic random column packing are frequently used in absorption, scrubbing, stripping and heat transfer service.
Type

  D*H*T
    (mm)

Bulk Number
      (n/m3)

Bulk Density
(kg/m3)

Specific Surface Area
              (m2/m3)

Void Volume
(m3/m3)

Dg25

25*12.5*1.2

      97680

        102

                      288

      0.847

Dg38

38*19*1.2

      25200

          63

                      265

        0.95

Dg50

50*25*1.5

      9400

          75.2

                        250

        0.96

Dg76

76*38*2.6

      3700

          59.2

                      200

        0.97


Prod Model: CHEMSUN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item: Plastic Saddles
Feature: High Void Ration, Low Pressure Drop
Application: Petroleum, Chemical,Alkali-Chloride,Coal Gas
Types: Pall Ring, Saddles, Conjugate Rings
Industry: Scrubbing,Stripping,Separation,Isolation,Absorptio
Material: Plastic
Structure Feature: Saddle Ring Filler
Type: Random Packing
Usage: Chemical Industry Product
Packing: With Valve Bags
Effect: Mass Transfer
Source: Plastic
Pingxiang Chemshun ceramics Co., Ltd is a manufacturer of 95%Al2O3 alumina wear ceramic products. Chemshun ceramics was established in 2002, we have 12 years of professional producing and import & exporting experierence. We have the products and service of: Design, produce, sell, Our products range as follows:

1) 95% Alumina wear resistant product and high quality grinding media. (we also can supply the Al2O3: 92% products according to detailed requirement): Ceramic liner, alumina tile, alumina pipe, ceramic blocks, abrasion resistant lining, lined pipe and fitting, linings, wear-resistance ceramic linings, pre-engineered, custom designed alumina ceramic, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc. We not only afford the products but also can afford the engineer service and on-site fixing.

2)High quality Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.

Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. With the predominance be of honesty, efficiency, specialty and innovation, Pingxiang chemshun ceramics Co., Ltd will satisfy global makket requirement.

Has strong research and production capability, with an annual production capacity of 4000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
