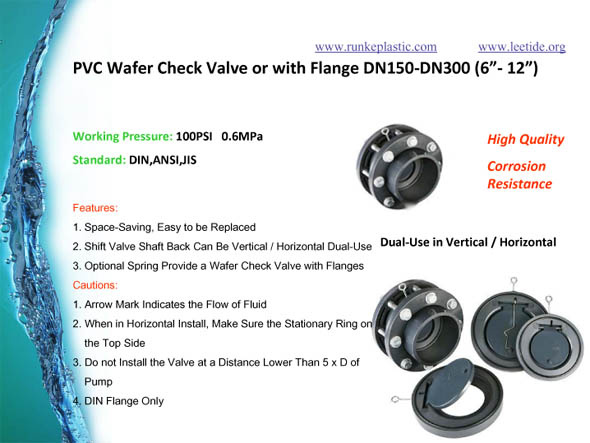

Plastic PVC Wafer Check Valve DIN Standard DN150-DN300 ( 6"-12" )
Working pressure: 6kg/ cm2 100 psi
Material: PVC, CPVC,
Standard: DIN
FEATURES:
Space-Saving, Easy to Replace
Shift Valve Shaft Back Can be Vertical / Horizontal Dual-Use,
Optional Spring Provide a Wafer Check Valve with Flanges
CAUTION
Arrow Mark Indicates the Flow of Fluid
When in Horizontal Install, Make Sure the Stationery Ring on the Top Side
Do not Install the Valve at a Distance Lower Than 5 x D of Pump Out.
|
Inch |
D |
DN |
PN(MPa) |
A |
B |
d |
Flange |
Bolt MxL |
|
6" |
160 |
150 |
1.0 |
218 |
26 |
105 |
DN150 |
20x130 |
|
8" |
200 |
200 |
0.6 |
273 |
34 |
126 |
DN200 |
20x140 |
|
8" |
225 |
200 |
0.6 |
273 |
34 |
140 |
DN200 |
20x140 |
|
10" |
250 |
250 |
0.6 |
330 |
40 |
170 |
DN250 |
22x160 |
|
12" |
315 |
300 |
0.6 |
380 |
47 |
220 |
DN300 |
22x180 |
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
