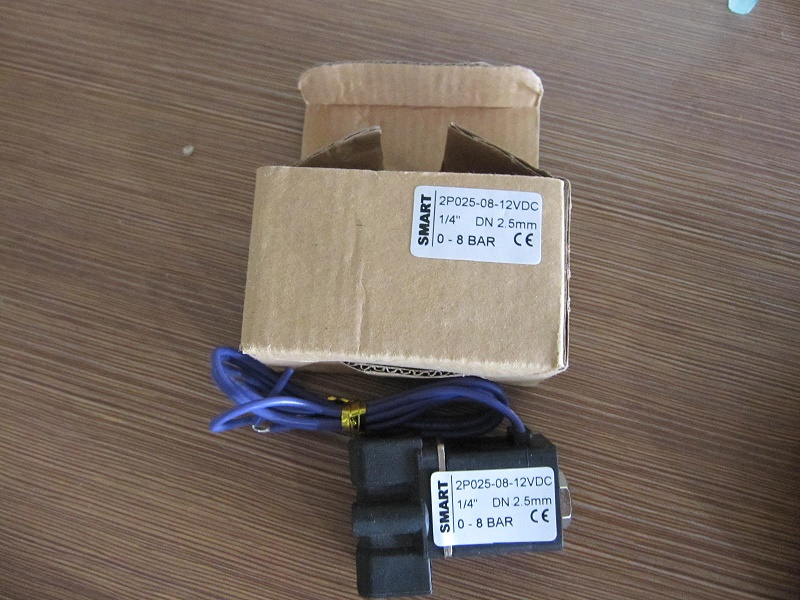

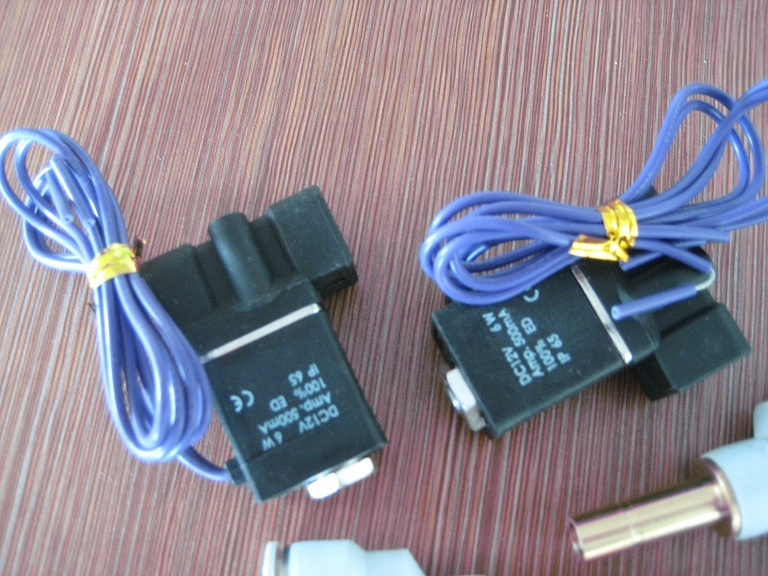

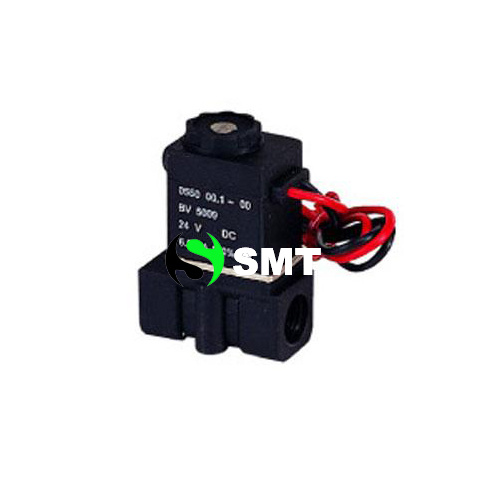

1: 2 /2 way plastic solenoid valves 2: Direct Acting,normally closed 3: 0~0.7Mpa, 1/8'',1/4''
2/2 way, solenoid valve with engineering plastic body
Why choose us?
(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.
(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.
(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.
(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.
Port Size: 1/8'' , 1/4''
Working Medium: Air, Water, Oil, Gas
Acting Type: Direct Acting
Orifice Size : 2.5mm
Acting Type: Normally closed
Operating Pressure: 0~0.7Mpa
Max. Pressure Resistance: 1.0Mpa
Operating Temperature: -5~80 oC
Material of Body: Engineering Plastic
Material of Oil Seal: NBR or VITON
ItemType |
2P025-06 |
2P025-08 |
Port size |
1/8" |
1/4" |
Fluid |
Air,Water,Oil,Gas |
Acting |
Direct acting |
Orifice size(mm) |
2.5 |
Temperature |
-5~80oC |
Viscosity limit |
Under 20CST |
Seal material |
NBR or VITON |
Pressure range |
0~0.7MPa |
Proof pressure |
1.0MPa |
Type |
Normally closed |
Material of body |
Plastic steel |
CV value |
0.23 |
Voltage range |
-10%~+10% |
