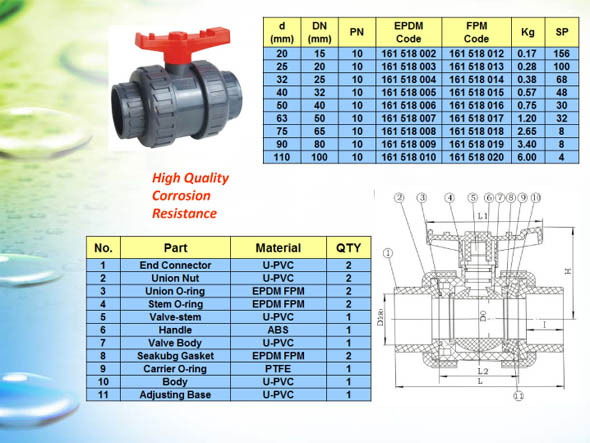

Plastic UPVC True Union Ball Valve
DN15-DN100 (1/2"- 4")
Working pressure: 10 kg/cm2 150 psi.
Standard: DIN, ANSI, BS. JIS
|
Inch |
DN |
d |
DIN/de |
L1 |
L2 |
L |
H |
A |
B |
B1 |
B2 |
MXS |
F |
|
1/2" |
15 |
15 |
20 |
21 |
47 |
99 |
50 |
72 |
54 |
34 |
32 |
3x7 |
30 |
|
3/4" |
20 |
20 |
25 |
25 |
54 |
117 |
61 |
78 |
62 |
40 |
37 |
6x8 |
33 |
|
1" |
25 |
25 |
32 |
29 |
62 |
132 |
68 |
85 |
72 |
47 |
45 |
6x11 |
40 |
|
1-1/4" |
32 |
30 |
40 |
29 |
69 |
142 |
80 |
88 |
84 |
57 |
55 |
8x11 |
47 |
|
1-1/2" |
40 |
38 |
50 |
31 |
80 |
158 |
89 |
108 |
95 |
64 |
61 |
8x11 |
52 |
|
2" |
50 |
48 |
63 |
38 |
85 |
176 |
103 |
133 |
116 |
77 |
75 |
8x15 |
70 |
|
2-1/2" |
65 |
65 |
75 |
58 |
124 |
256 |
128 |
220 |
147 |
97 |
90 |
10x15 |
95 |
|
3" |
80 |
76 |
90 |
64 |
124 |
266 |
135 |
220 |
164 |
116 |
112 |
10x15 |
120 |
|
4" |
100 |
100 |
110 |
90 |
139 |
337 |
163 |
250 |
204 |
137 |
131 |
12x20 |
150 |
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
