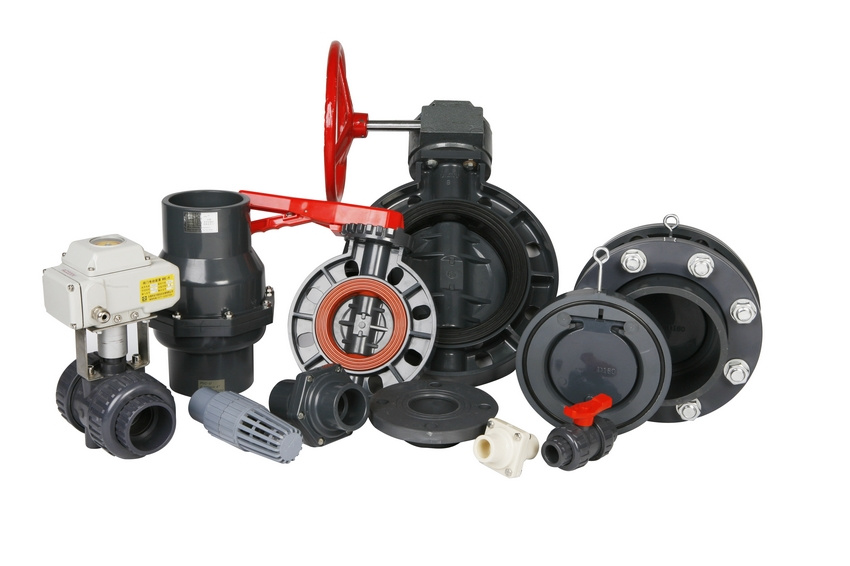

Plastic Valve DIN ANSI JIS BS Standard
UPVC Plastic Swing Check Valve ( in Vertical or in Horizontal ) DIN, ANSI, JIS, BS Standard DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10
Feature:
1. Inclined Seal Plane Structure, Extra Weight in Flap, Can be Dual-Use in Vertical / Horizontal
2. Full-Flow, Low Resistance. Small Opening Pressure Shift
3. No Internal Exposed Metal Parts, No Springs, Not Easy to Be Blocked, Complete Anti-Corrosion
4. Low Open Pressure (<0.01kg/cm2).
5. Increased Wall Thickness, and Are Support to 1.5 Times the Back-Pressure PN
6. Connection with Stainless Steel Bolts, Easy Clean-Up of Internal Opening
PVC Wafer Check Valve or with Flange DN150-DN300 (6"- 12")
Working Pressure: 100PSI 0.6MPa
Standard: DIN
Dual-Use in Vertical / Horizontal
Features:
1. Space-Saving, Easy to be Replaced
2. Shift Valve Shaft Back Can Be Vertical / Horizontal Dual-Use
3. Optional Spring Provide a Wafer Check Valve with Flanges
Cautions:
1. Arrow Mark Indicates the Flow of Fluid
2. When in Horizontal Install, Make Sure the Stationery Ring on
The Top Side
3. Do not Install the Valve at a Distance Lower Than 5 x D of
Pump
4. DIN Flange Only
PVC, FR-PP, PP-R Butterfly Valve (Lever) DN50-DN200 (2"- 8")
Working Pressure: DN50-DN150(2"- 6") 150PSI 1.0MPa; DN200(8") 100PSI 0.6MPa
Standard: DIN, ANSI, JIS
With Carbon Steel Stem #45 & EPDM Rubber
With Stainless Steel Stem # 420 & EPDM Rubber
With Stainless Steel Stem # 304 & EPDM Rubber
With Stainless Steel Stem # 304 & FPM Rubber
With Stainless Steel Stem # 316 & EPDM Rubber
With Stainless Steel Stem # 316 & FPM Rubber
PVC, FRPP Butterfly Valve (Worm Gear) DN80-DN400 (3" - 12")
Working Pressure:
DN80-DN200(3"- 8") 150PSI 1.0MPa
DN250-DN300(10"- 12") 100PSI 0.6MPa
DN350-DN400(14"- 16") 60PSI 0.4MPa
Standard: DIN, ANSI, JIS CNS
With Carbon Steel Stem #45 & EPDM Rubber
With Stainless Steel Stem # 420 & EPDM Rubber
With Stainless Steel Stem # 304 & EPDM Rubber
With Stainless Steel Stem # 304 & FPM Rubber
With Stainless Steel Stem # 316 & EPDM Rubber
With Stainless Steel Stem # 316 & FPM Rubber
|
Inch |
DN |
DIN/de |
D |
L1 |
L |
W |
|
3/4" |
20 |
25 |
36 |
27 |
98 |
64 |
|
1" |
25 |
32 |
46 |
27 |
107 |
75 |
|
1-1/4" |
32 |
40 |
56 |
34 |
130 |
110 |
|
1-1/2" |
40 |
50 |
66 |
38 |
147 |
120 |
|
2" |
50 |
63 |
81 |
39 |
162 |
140 |
|
2-1/2" |
65 |
75 |
95 |
45 |
198 |
148 |
|
3" |
80 |
90 |
112 |
55 |
236 |
163 |
|
4" |
100 |
110 |
132 |
75 |
305 |
204 |
|
6" |
140 |
160 |
194 |
90 |
379 |
282 |
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
