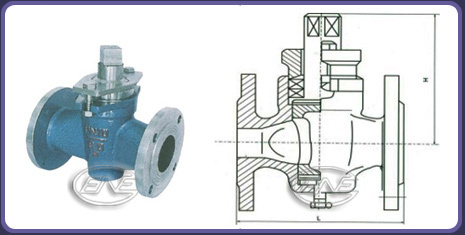

PLUG VALVE ACC. TO GB SEHEMATIC DIAGRAM OF INSTALLATION
Model X43W-6
Pressure PN6
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF, BW 80 90 110 130 150 170 220 250 300 350 400 480 600 730
H 115 120 125 140 150 165 180 190 229 290 350 450 500 740
Weight(kg) 4 5 7 10 14 22 32 46 96 134 180 260 350 520
Model X43W-10
Pressure PN10
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF, BW 80 90 110 130 150 170 220 250 300 350 400 480 600 730
H 115 120 125 140 150 165 180 190 229 290 350 450 500 740
Weight(kg) 4 5 7 10 14 22 32 46 96 134 180 260 350 520
