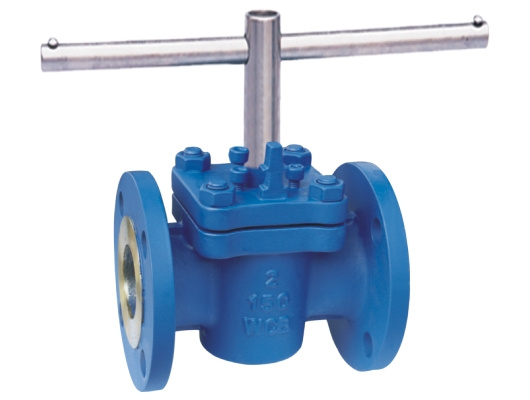

Plug valve
1. Plug valve has soft-seat and metal-seat sealing configurations.
2. Each of plug valve can come to the sealing rate: Zero leakage.
3. Meanwhile, plug valve has the merits of zero dead space, zero maintenance, and etc.
4. Plug valve has control and shut-off characteristics, and specially suits for control of fluids with fiber and slurry.
Plug valve specifications:
A)Body type: YD500P
B)Body size: 1"(25A)-18"(450A)
C)Body rating: ANSI Class150~900#
D)Fluid temp.: -18~+150 Deg.
E)Connections: (RF, RTJ), Flanged(RF, RTJ)
F)Body materials: WCB, CF8, CF8M, CD4MCU, CF3M, ect
G)Trim materials: PTFE
H)Leakage: Zero Leakage
If you are interested in plug valve, please don't hesitate to contact us!
We provide carbon steel plug valve, stainless steel plug valve, alloy steel plug valve, forged steel plug valve, pressure seal plug valve and bellows sealed plug valve.
|
Design Standard |
API 6D, API 599 |
|
Face to face standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5, ASME B 16.25 |
|
Testing Standard |
API 6D, API 598 |
|
Connection |
Butt Welding, Flange |
|
Pressure Rating |
Class 150LB - 900LB |
|
Size |
NPS 1/2" -14" |
|
Material |
WCB, CF8, CF8M, CF3, CF3M, etc. |
|
Actuator |
Wrench wheel, Worm Gear, Pneumatic, Electric |
