Product Description:

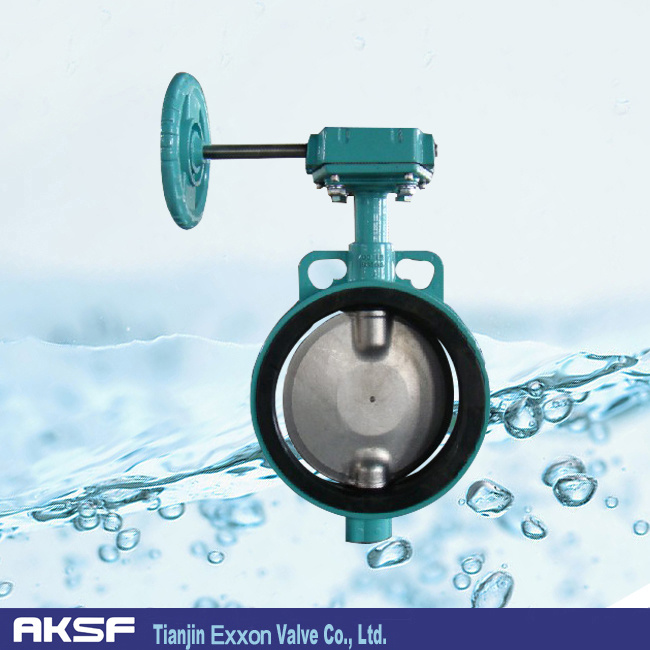

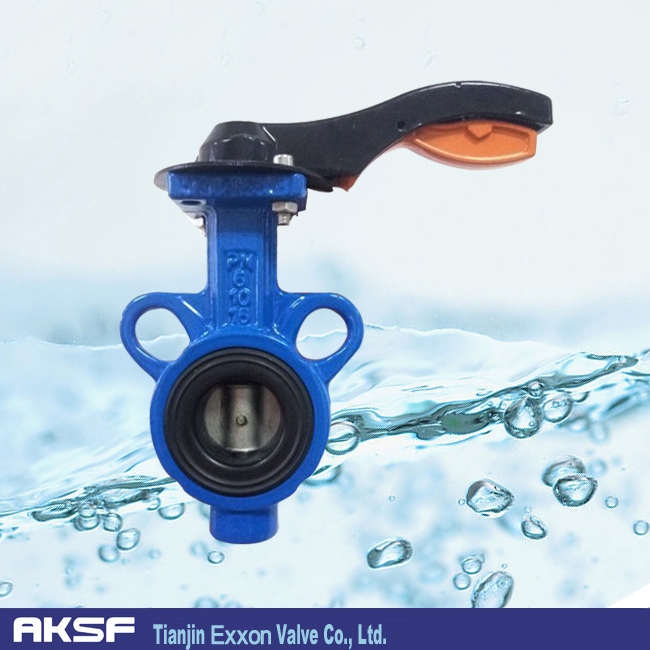

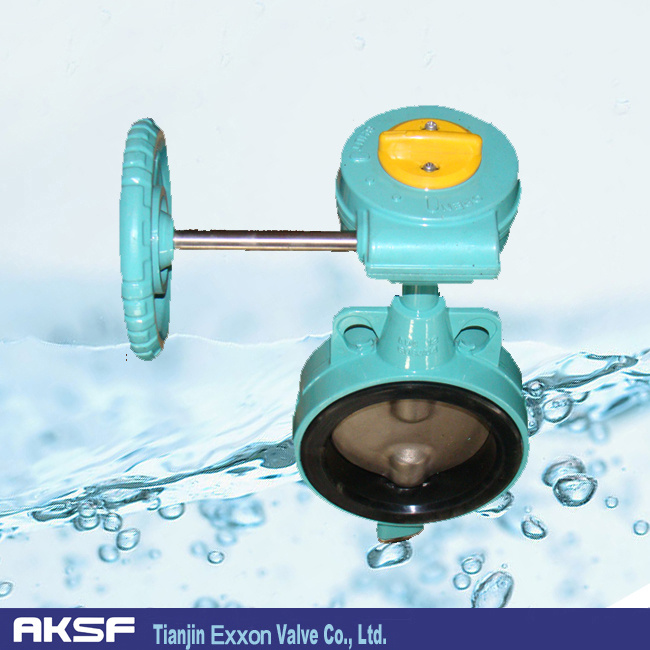

Anti-condensation aluminum diecast body butterfly valve has features of larger flow rate, super light weight and remarkable anti-Condensation Capability.
Description:
Body: Aluminum diecast alloy
Disc: Stainles steel
Stem: Polyphenylene sulfide lined on stainless steel core
Seat: EPDM, NBR, Silicon.
Column: Engineering plastic
Body: Urethane paints with munsell 2.5BG 6/12
Valve nominal size: 40mm to 300mm
Applicable flange standard: JIS5/10K, ANSI125/150Lb.
Design standard: JISB2032
Max. Working pressure: 1.0MPa
Working temperature range: EPDM(from20 to 120 degrees C); Silicon (from 30 to130 degrees C)
Woking temperature: EPDM(from10 to 100 degrees C); Silicon (from 30 to 130 degrees C)
Body shell test: 1.5MPa
Seat leak test: 1.1MPa
Actuator mounting flange: ISO 5211
Actuators: Lock lever, Worm gear, Vertical gear, Pneumatic cylinder, Electric motor
Face to face dimensions: ISO 5752/JIS B2032
Butterfly valves are inserted into a pipe that was fitted with the disc when fully open. In cases where you are using a pipe or flange that is less than the minimum inner pipe diameter, use is still possible if means are taken such as inserting a spacer between the valve and flange. For details, please consult us.
| Body | Aluminium Alloy |
| Disc | Stainless Steel |
| Stem | Stainless steel |
| Bushing | Lubricated bronze, PTFE |
| Seat | BUNA, EPDM, Neoprene, PTFE, NR, NBR, Hypalon, VITON |
| Pin | Stainless steel |
| O-ring | BUNA, EPDM |
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
