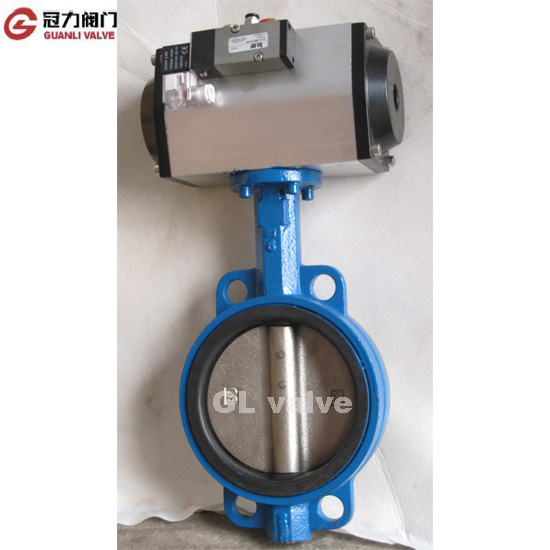

Pneuamatic Butterfly Valve
Size: 2"-48"
Pressure: 150LB-300LB
Materials: WCB, WCC, LCC, LCB, CF8, ect.
Operation: Pneuamatic
Temp.: -29° — 425°
Medium: Water, steam, oil, gas ect.
Standard:
1. Design standard: JB/T8527-97, ANSI B16.34
2. Face to Face Dimension: GB12221-89, API609
3. Tubing Flange: JB/T79-94, GB9113. ANSI B16.5
4. Check and Test: GB/T13927-92, API598
|
Pneumatic butterfly valve specifications |
|
No. |
Parts name |
Material |
|
1 |
Valve body |
ASTM A48 |
|
2 |
Disc |
ASTM A48+Nickel |
|
3 |
Stem |
SS420 |
|
4 |
Seat |
EPDM |
|
5 |
Actuator |
DA pneumatic |
|
DN |
|
|
|
|
mm |
in |
L |
D1 |
n-M |
|
50 |
2 |
43 |
120.5 |
4-5/8" |
|
65 |
221 |
46 |
139.5 |
4-5/8" |
|
80 |
3 |
46 |
152.5 |
4-5/8" |
|
100 |
4 |
52 |
190.5 |
4-3/8" |
|
125 |
5 |
56 |
216 |
8-3/4" |
|
150 |
6 |
56 |
214.5 |
8-3/4" |
|
200 |
8 |
60 |
298.5 |
8-3/4" |
|
250 |
10 |
68 |
362 |
12-7/8" |
|
300 |
12 |
78 |
432 |
12-7/8" |
|
≥14",please inquiry. |
|
Design & Manufacture |
Face to face |
Inspection &test |
|
API 609 |
ANSI B16.10 |
API 598 |
|
Note: Above material is our normal one. Other material on request. |
