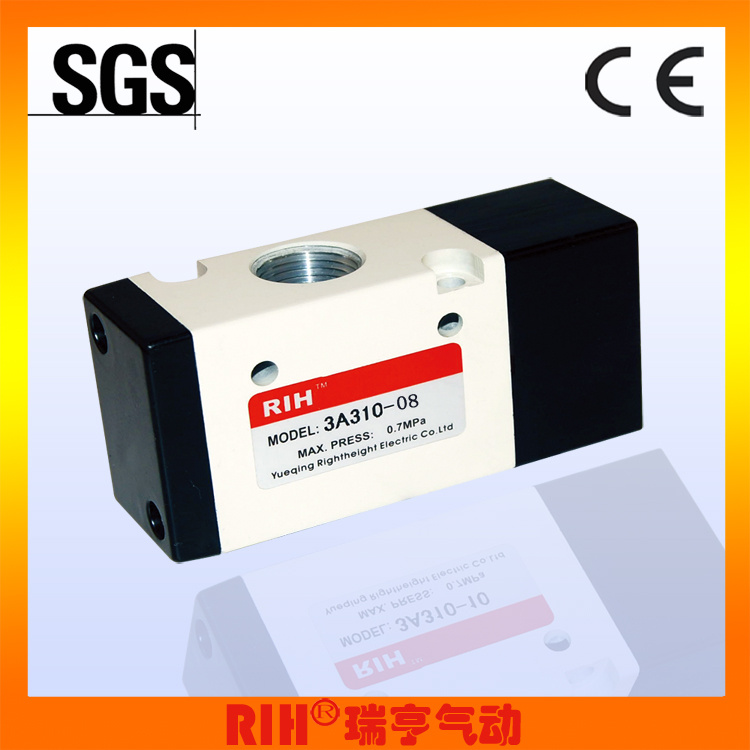

Pneumatic 2/3way Air Valve (3A310-08)

Pneumatic 2/3way Air Valve (3A310-08)
Price: US $ 3.5-4/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
RIH pneumatic air control valve

Two position three way
Effective Sectional Area: 25mm
CV=1.4
Port size: Inlet=outlet=1/4''
Exhaust=1/4''
Working Medium: Air(40 Micron Filtered)
Acting type: Inner guide type
Working pressure: 0.15~0.7Mpa
Max. Pressure: 0.7Mpa
Working temp.: 5~50C
Protection Class: IP65
Max. Frequency: 5 cycle/sec.
Shortest Activate Time: 0.05Sec.
Size: 8.1*1.8*2.7cm per PC
Model                                            3A310-08
Working Medium                                  40 Micron filtered air
The Position                                  Two position three -port
Effetive Area                                         25mm 2 (CV=1.4)
Joint Pipe Bore                 Air Inlet=Air Outlet=Exhaust=1/4" (G)
Working-Pressure                                  1.7-7.0kg/cm 2 (24-100psi)
Max. Pressure-Resistce                                    10.5kg/cm2(150psi)
Operating Temperature                                                    5-50
Voltage Range                                                     ± 10%
Power Consumption                                            AC: 1.3VA  DC: 1.5W
Wiring Form                                     Direct outlet or terminal type
Highest Action Frequency                                             5 cycle per sencond
Shortest Excitation                                                       0.05 second
Prod Model: 3A310-08
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port Size: Inlet=Outlet=1/4''
Type: Direct Acting
Connection Form: Thread
Valve Structure: Direct-Acting Piston Structure
Power Supply: AC Solenoid Valve
Application: Household Usage
Yueqing Rightheight Pneumatic Co., Ltd. was founded in April 4th, 2003. And known as "RIH" brand, Our company is a special manufacturer of pneumatic products. Our main products cover air treatment unit, pneumatic actuators(air cylinders), solenoid valves, pneumatic accessories&various pneumatic equipment & OEM service.

In the past few years, our company absorbed and digested advanced technology both at home and abroad. Meanwhile, our company staffs a team of experts devoted to improvement of products, Both performance index and quality of our products reach the top of domestic market. Our products are widely applied in industries with high automatic level, such as textile, chemical, mineral, electric power, and papermaking industries.

Our company promises all users the first-class products and the most satisfying post-sale service. We warmly welcome our regular and new customers to join us for a better future.
