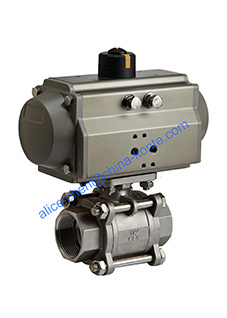

Pneumatic 3PC Stainless Steel Ball Valve
Price: |
US $ 38/Piece |
Trade Terms: |
FOB,CIF,DAP |
Min Order: |
1/Piece |
Pay Type: |
L/C,Western Union |
I. Specification: Media | water, oil, steam, liquid etc. |
Medium Temperature | -10°C~180°C |
Pressure | 0.2~2.5Mpa |
Material | stainless steel |
Port size | 1/4″~ 4" |
Orifice | DN08-DN100 |
Seal | PTFE, PPL |
AT actuator | Double Acting, Spring Return |
Adjust Angle | ±5% |
Packing Detail | Carton Box, Plywood Case |
II. Features and Benefits:- Full Port Design
Full port construction improves flow characteristics for greater process efficiencies - Blow-Out-Proof Stem
Stem is bottom loaded to prevent removal when valve is in service - Locking Device
Enables plant personnel to secure valve in open or closed position when manually operated - Live-Loaded Stem Packing
Provides constant load on the stem seal and extends service life - Corrosion Resistant
Made of 316 stainless steel (A351 Gr. CF8M) for greater chemical resistance and longer service life
Prod Model: |
Q611F-16P/R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Connection Form: |
Thread |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Material: |
Stainless Steel |
Application: |
Household Usage |
Kangtuo International Trading Co., Ltd is not only a trading company but a combination of four factories whose products are complementary to each other. Konte deals with Pneumatic Actuator, Electric Actuator (Rotary and Multi-Turn), Ball Valve (Industrial and Sanitary), Butterfly Valve (Industrial and Sanitary), Pneumatic Angle Piston Valve, Diaphragm Valve, Gate Valve, Globe Valve, Check Valve, etc.
Konte makes full use of resources from the four factories, namely, Kangsaite, Homin, Yuanyu and Lianggong and has their technical, quality-control and price support. Established in 1978, Lianggong Valve Co., Ltd. Covers an area of 15000 square meters and produces pressure seat gate valve, globe valve, ball valve, control valves, butterfly valves, check valves, etc. Kangsaite Valve Co., Ltd. Specializes in pneumatic actuator, electric actuator, angle piston valve, diaphragm valve, etc. Yuanyu Machinery Co., Ltd. is professional manufacturer of high-precision sanitary valves & fittings and fluid equipment. Products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industry areas. Homin Valve Co., Ltd. Covers an area of 16650 square meters and produces specially metal seated ball valves, floating ball valves, trunnion mounted ball valves and eccentric segmental ball valves which are widely applied to most severe and harsh conditions, such as high-temperature (up to 816º C), high-pressure (up to 15000psi), low-temperature(down to -196º º C), abrasive particulates (catalyst in mine and petro-chemical industry, PTO process, coal dusts and ashes).
With advanced management system and complete quality assurance system, we have got certificates such as CE, ISO, TS, FDA, API, DNV, etc.
We aim at providing one-stop service and offering professional guidance for clients all over the world. With the 4 factories as backup, we believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
