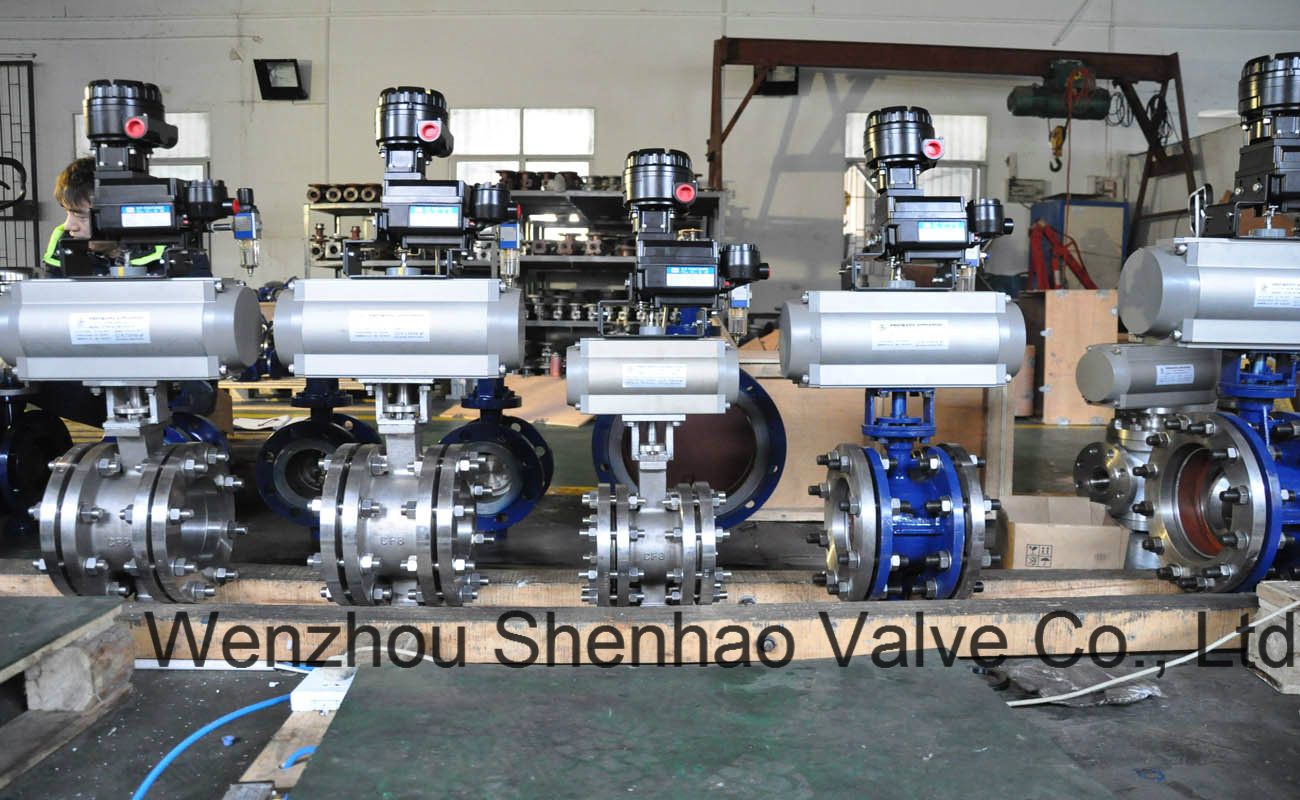

Pneumatic Actuated Double Flanged&Wafer/Lug Butterfly Valve are with Main Features as below:
Resilient Seated Seated or Fully Lined Design
Concentric or Eccentric Structure
Wafer, Lug, Groorved, Flanged, MJ (Machnical Joint) Ends
Sizes: 3 through 96 inches
Body Style: Flanged x flanged ends
Other Body Style Options: Mechanical joint, victaulic, flanged & mechanical joint, push-on, push-on & flanged
Pressure Class: Class 150B per AWWA Standard C504
Working Pressure: 150 psig
Flanges: Flat faced and drilled in accordance with ANSI B16.1, Class 125 standards
Rubber Seat: Bonded seat-in-body
Actuation Options: Vatac hand lever, MDT manual actuator with AWWA nut, handwheel or chainwheel, Vatac Dura-Cyl hydraulic or pneumatic cylinder, Vatac electric actuator
Quick Details
Standard or Nonstandard: StandardStructure: ButterflyPressure: Medium Pressure
Power: ManualMaterial: Stainless SteelTemperature of Media: Medium Temperature
Media: WaterPort Size: 14"Place of Origin: Zhejiang China (Mainland)
Model Number: D341Brand Name: VATAC/VANGO
Packaging & Delivery
Packaging Detail: Sea worthy ply-wood packing
Delivery Detail: 45 days against purchase order
Specifications
Designed and Manufactured of Butterfly Valve to BSEN593 and MSS SP-67 and API 609
Butterfly Valve is Suitable to ANSI 125/150
Butterfly Valve Features:
Designed and Manufactured of Butterfly Valve to BSEN593 and MSS SP-67 and API 609
Butterfly Valve is Suitable to ANSI 125/150, BS4504, DIN flanges
Size Ranges of Butterfly Valve: NPS 2"~52"
Pressure Rating: PN10/16, ANSI125/150/300/600/900
Materials of Butterfly Valve available in Iron, Steel, Stainless Steel, Duplex and Bronze, Seat Material in Both Resilient and Metal Type, Different trim materials of Butterfly Valve are available to suit different service conditions
Butterfly Valve Fire-safe design to API 608/API 6FD upon request
To MSS SP 01-75 On request
Operations of Vango Butterfly Valve: Lever, Worm-gear, Electric, Pneumatic and Hydra-pneumaticHigh API Pneumatic Actuated Double Flanged&Wafer/Lug Butterfly Valve
DESGN & MFT. | API 609 | ENDS CONNECTION | WAFER |
| PRE-TEP. RATING | 120 C MAX | INSPECT & TEST | AWWA C-504 |
| F-F DIMENSION | AWWA C504 SHORT PTN | END CONNECTION | ASME B16.1 |
| LOGO | VATAC/OEM | FIRE SAFE DESIGN | AWWA |
| PAITING | IN/EX EPOXY |
|
|
We belong to Wuhan Hande Valve & Instrument Co., Ltd branch of the company. It is located in Wuhan, Hubei Province, China. All the names in our certificates are our head quarter which is Wuhan Hande Valve & Instrument Co., Ltd. Our company is chagring of international markets and business.
SHENHAO VALVE Co., Ltd. Has been developed into a large-scale hi-tech enterprise integrating research, development, production and distribution through over twenty years of operation.
We are located in Oubei Town, Zhejiang Province, China, which is typically known as the "Pump Valve Town of China". Integrating with design & development, manufacturing and marketing, SHENHAO Valve Co., Ltd. is Chinese leading Valve Manufacturer, Supplier & Exporter. It has more than 260 staffs, of which 50 are professional technicians. SHENHAO has two main manufacturing bases which covers an land area of 20000 m2 with building area of 12000 m2. SHENHAO is the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.
We hold the principle of "mutual benefit and win-win result" to cooperate with importers. We have exported valves to Spain, Italy, Pakaistan, Turkey and India. Our products are famous of its good quality and favorable price.
We shall try our best to satisfied all the requirements from our customers. We try to do "Zero Explain". Fortunately, we have done it succesfully. Choose us to be one of your suppliers, which your correct choice!
We are looking forward to work with you!
