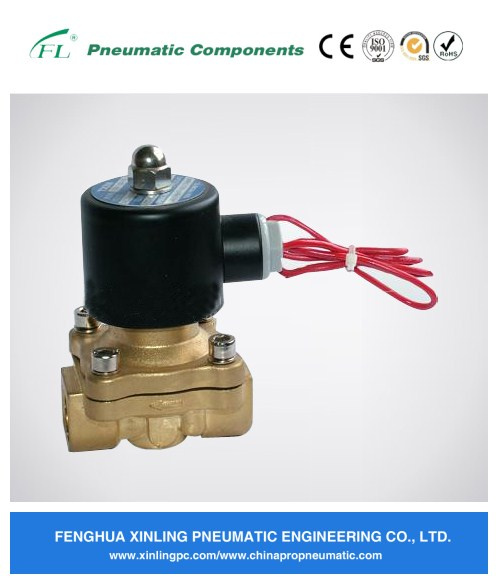

Product Description: Pneumatic Brass Solenoid ValveProduct Features of 2/2 Way Fluid Control Valve:
1. Direct acting and normally closed type 2/2 way solenoid valve. It's high sensibility allows it to change direction quaickly.
2. It has wide pressure range.
3. It is compact, small size and light weight, which makes it easy to install and dismantle.
4. The body of valve is made of brass.
5. The protection class of coil is IP65.

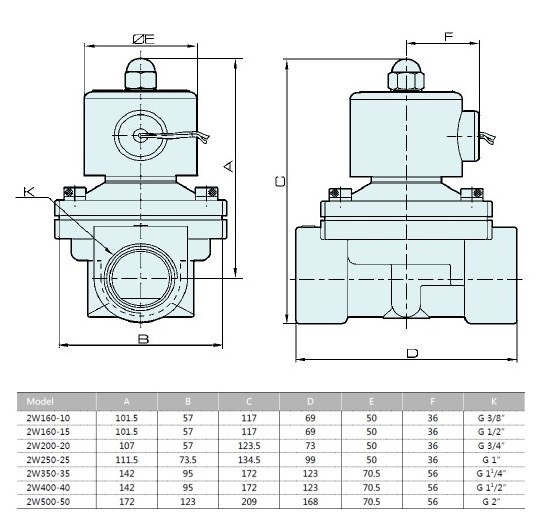

Dimension of Solenoid Valves for Water:
Specification of 2/2 Way Brass Fluid Control Valve:
| Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Fluid Medium | Air,Water,Oil,Gas |
| Acting | Direct acting |
| Type | Normally closed |
| Aperture of Flow Rate(mm) | 16 | 20 | 25 | 35 | 40 | 50 |
| CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Port Size | G3/8 | G1/2 | G3/4 | G1 | G1-1/4 | G1-1/2 | G2 |
| Viscosity Limit | Under 20CST |
| Pressure Range | Water,Oil:0--0.5MPa; Air,Gas:0--0.7MPa |
| Proof Pressure | 1.05MPa |
| Temperature | -5--80ºC |
| Voltage Range | +/-10% |
| Material of Body | Brass |
| Seal Material | NBR,EPDM or VITON |

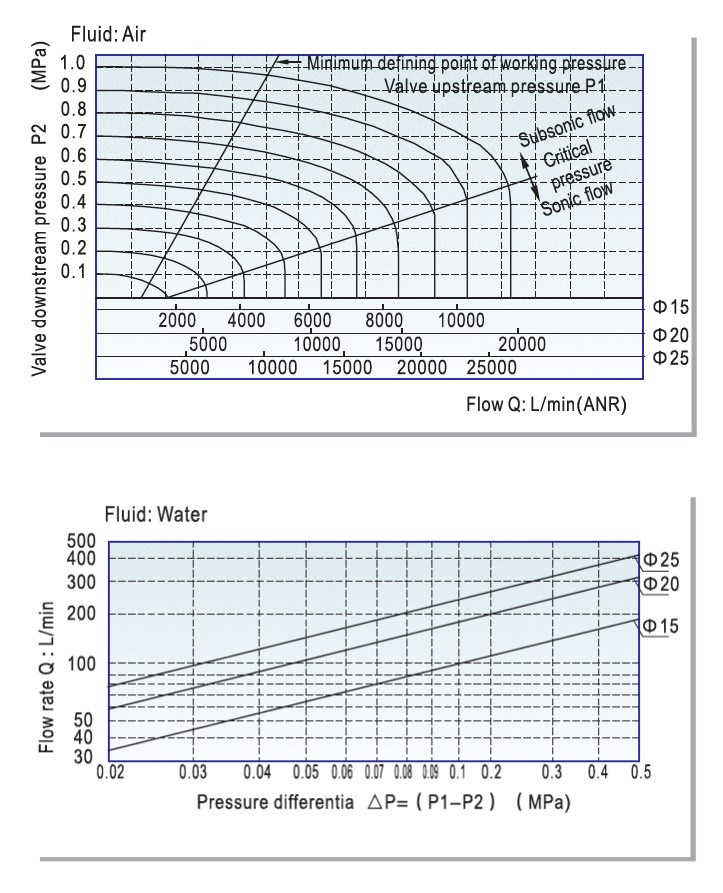

Flow Chart of Pneumatic Water Control Valves:
Structure of Solenoid Control Valves for Water:
