ACTORED Pneumatic Butterfly Valve Technical Specifications:
Working temperatures: 20ºC to 100ºC.
Lubrication: All actuators are supplied lubricated for their normal working life.
Rotation: Anticlockwise in opening. To reverse actuator rotation, inert pistons
Movement: Rotation of 0º +2, 5º and 0º -2, 5º, rotation of 90º +2, 5º and 90º -2, 5º
Body treatment: Extruded aluminum alloy, hard anodized
Connection standard: ISO5211, NAMUR
The following options are available under request:
Nickel Plate
Low temperature versions up to -50ºC
High temperature versions up to +180ºC
Stainless steel drive shaft
Coating according to request
Some sizes are available with 180º rotation in double acting, and in RPC (return central position)

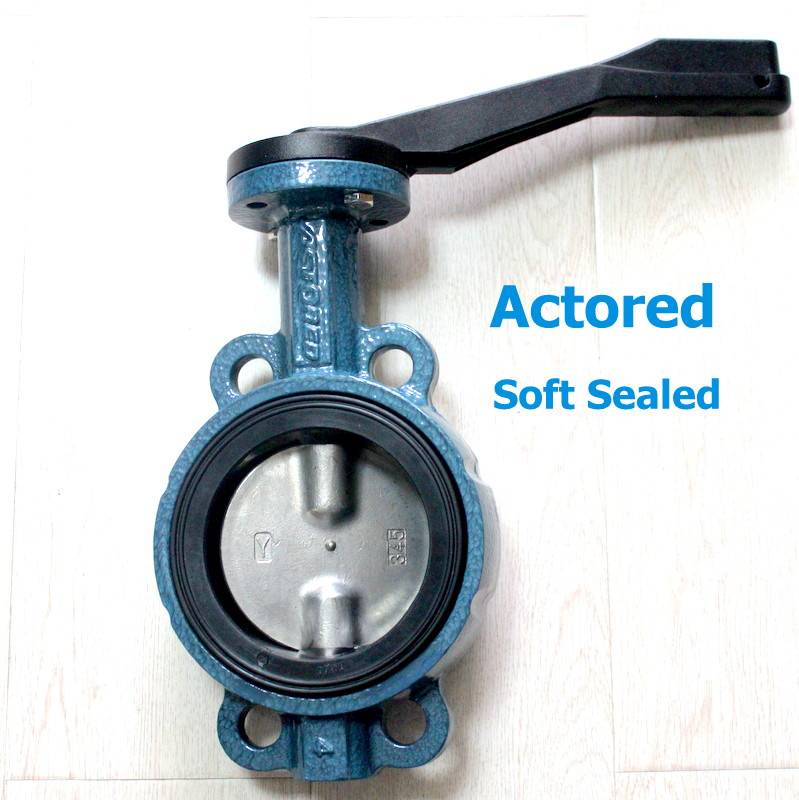

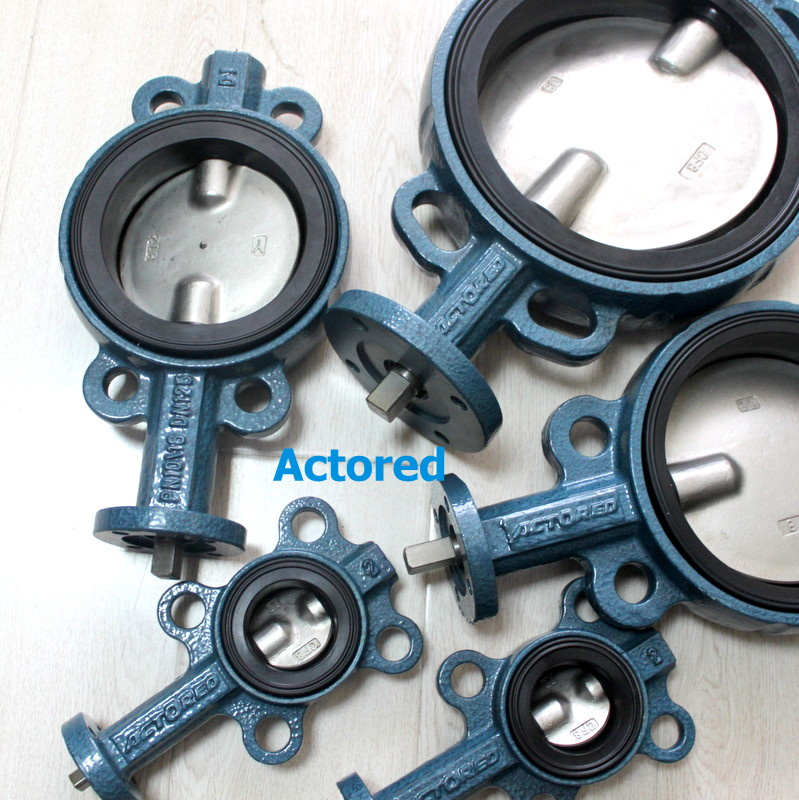

ACTORED Butterfly Valve Specifications:
1. Body materials are optional, Cast Iron, Carbon Steel, SS304, SS316, SS316L
2. DISC materials: Ductile Iron coated with Nylon or Nickel, SS304, SS316, SS316L, DUPLEXSS
3. Seat materials: EPDM, PTFE, Wear-resistant EPDM
4. Stem: SS416, Carbon Steel 45#
Since founded, ACTORED CORP has been specialized in production and development of high quality ACTAUTORS, an accent of quality combined with ongoing research help ACTORED to be outstanding. Now ACTORED has three factories in China, located in Shanghai, Wuxi, and Tianjin.
