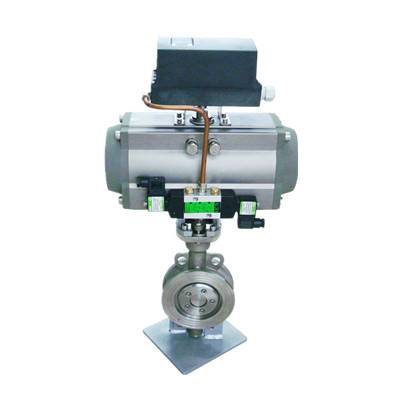

Because this butterfly valve adopt three-dimensional eccentrie to design, makes the movement track on facing space reachto idealization, and there are no attrition and on intervene between hermetical components, furthermore, the hermetical material has been selected reasonably, thereby it ensure hermetic, Antisepsis, wearable caoability of valve. The main characterstic as below:
1. Tiny moment for starting, for starting, flexible and convenient, save labor and energy.
2. Three-dimensional eccentric comfiguration forces disc close tighter, and reach to reliable hermetic capability and with noleakage.
3. Lthascharacteristicof high temperature, high pressure resistant, antisepsis, wearable, long service life etc.
|
parts name |
Materrial |
|
BODY |
Cast rion,stainless steel, Cr.MO. Steel/Alloy Steel |
|
DISC |
Cast rion,stainless steel, Cr.MO. Steel/Alloy Steel |
|
SEAL |
Stainless steel and higj temperature resistant asbestos composed of multiple layers |
|
STEM |
2Cr12.1Cr13 ,Stainless steel,Cr.MO.Steel |
|
AXLETEE |
304 nitrification |
|
PACKING |
Flexible graphite |
|
LEAKAGE |
<0.1*DNmm3/s |
|
APPROPRIATE TEMPERATURE |
Carbon steel :-29 celsius~425 celsius |
|
DRIVE MODALITY |
worm wheel drive.gas drive.electric drive |
