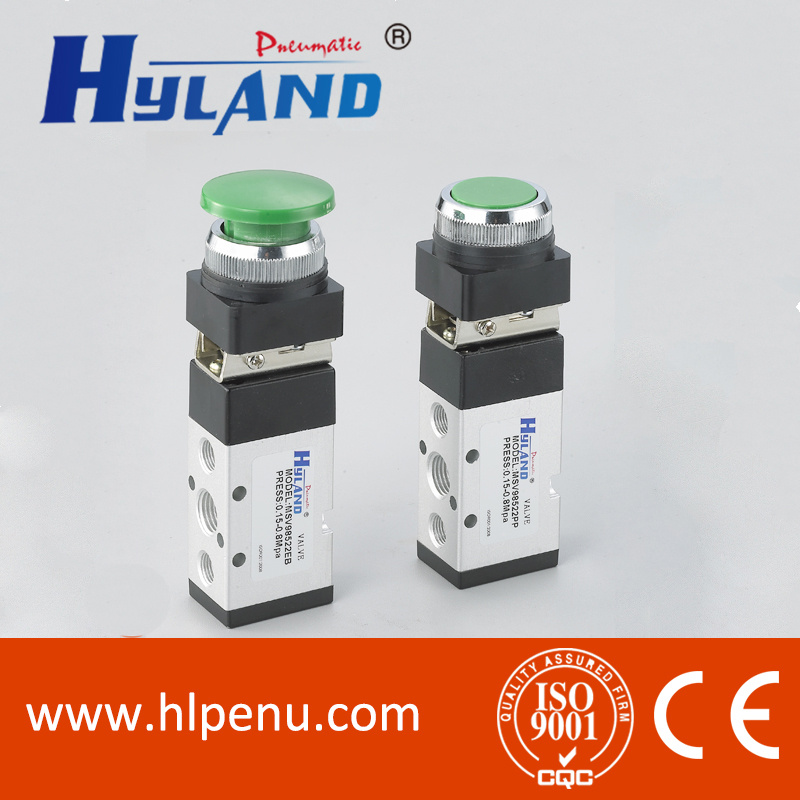

MSV: Specification Code Mechanical Valve;
86: Series Code: 86 Series, 98 Series;
32: Position and Way Number 32: Two-position Three-way 52: Two-position Five-way
1: Joint Pipe Bore 1: G1/8 2: G1/4;
R: Button Type: Blank: Basic Type R: Roller Type TB: Selective knob LB: Strengthened knob PB: Large Round Button PP: Plat Round Button PPL: Convex Round Button EB: With Lock Button;
Model | MSV86321 | MSV86522 | MSV98322 |
Medium | Filtered air |
CV Value | 0.67 | 0.89 |
Port Size | 1/8" | 1/4" |
Pressure Range | 0~8bar (0~116.03psi) |
Temperature Range | 0~60°C (32~140°F) |

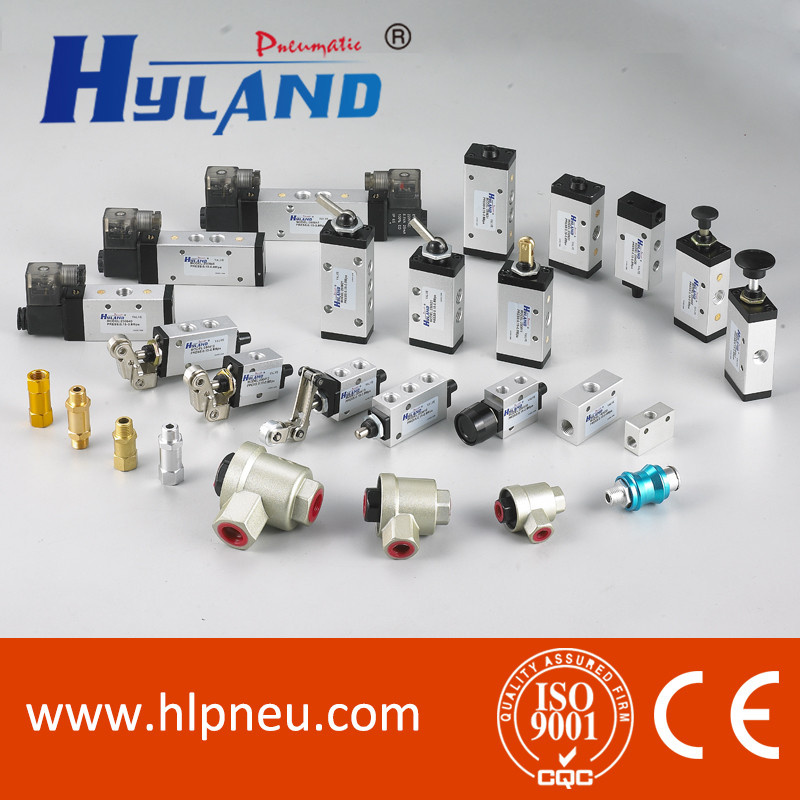

Ningbo Hailan Pneumatic Equipment Co., Ltd is a professional pneumatic enterprise which collected R&D, manufacturing, sales and after-sales service. It is specialized in production of control components, air source treatment units, executive components, and other pneumatic accessories.
Hailan pneumatic owns 4, 000 square meters of factory, and a batch of experienced professional and technical engineers, various international advanced production and testing equipments. And in the process of production, we accord to the customerized quality goal, compare and analyze the gap between the implementation process and result, make appropriate adjustment and improvement, thus eventually ensure that the customer's quality requirements are reached.
Ningbo Hailan Pneumatic Equipment Co., Ltd has passed the ISO9001: 2000 quality management system certification, and in strict accordance with the requirements of the quality system for both production and management.
"Hailand Pneumatic, Make Things Better".
