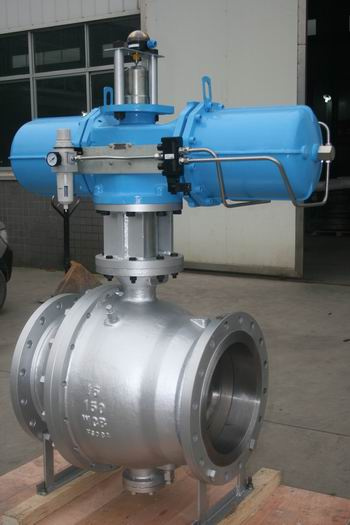

Pneumatic Casting Steel Ball Valve
Products Range:
Size: 2"-24" (DN50~DN600) (Full Bore)
3"-32"(DN80~DN800)(Reduced Bore)
Temperature: -46° C~+280° C
Pressure: ANSI 150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb
Body: A216WCB, A352LCB, LCC, A351CF8, CF8M, CF3, CF3M, A890 4A, A890 5A, A890 6A, Hastelloy A, Hastelloy B, Hastelloy C, 20 Alloy
Disc or Ball: A216 WCB (A105) ENP, A216WCB(A105)Hcr, A182, F304, F316, F304L, F316L, F51
Stem: AISI 4140, A182 F6a, F304, F316, F304L, F316L, F51, 17-4PH, 17-7PH
Seat: PTFE, R. PTFE, PEEK, NYLON Pa12 PPL
Operation: Pneumatic
Features:
The floating ball valve, trunnion ball valve, steam jacketed ball valve, three way ball valve and butterfly valve with soft seated, metal seated, high temperature seated can become pneumatic ball valve after mounting pneumatic actuator
Mounting with ball valve conforms to ISO 5211 standard
After installing solenoid valves, limit switch, air control components and positioner, the valve can be connected with the DSC computer process control system. Automatic controls realized.
The valve have their own features and functions.
End Connection:
Flange
BW
Application:
Oil, Chemical, Petrochemical, Metallurgical, Light industry, Refinery, Power station, Food, Pharmaceutical, Paper making, Mining etc.
Available:
Fresh Water, Sewage, Sea water, Air, Gas, Vapor, Food, Pharmacy, Medicament, Oil, Acid, Alkali, Salt etc.
UNICIMA VALVE MANUFACTURING
Co., Ltd.Is a Sino-Japan joint venture with Japan UNICIMA Corporation, specialized in developing and manufacturing ball valve and it actuator.
Our goal is to "satisfy customers by innovation, process control, and continuous improvement".Utilizing the advanced valve design, fabrication process of Japan UNICIMA Corporation, we adopt the design standard of ANSI, API, BS, JIS, GB, NF, JB to manufacture valves of various materials, including the cast steel and the forged steel .
Our Products include as following:
Floating Ball Valves;
Casting Steel Trunnion Mounted Ball Valves;
Forged Steel Trunnion Mounted Ball Valves;
Three Way Ball Valve;
High/Low Temperature Ball Valve;
Electric Ball Valve;
Pneumatic Ball Valve;
Threaded Ball Valve;
Cryogenic Ball Valve <-196 degree>;
Steam Jacketed Three Way Ball Valve;
Metal Seated Pneumatic Ball Valve;
Pressure:Class150 lb---Class 2500 lb,
Size:1/2 "---24",
Seat:Soft seated, Metal seated, High temperature seated.
Application:Oil & Gas, Pulp & Paper, Chemical, Marine, Mining, Metallurgical, Refinery, Power station, Food, Pharmaceutical, etc.
UCM-C is an ISO 9001, API 6D <6D-0882>, Lloyd's Register Fire Safe Test and Manufacture License of Special Equipment certified manufacturer for its complete set of quality assurance system.And also conforms to API 6FA.
