| Price: | US $ 500/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

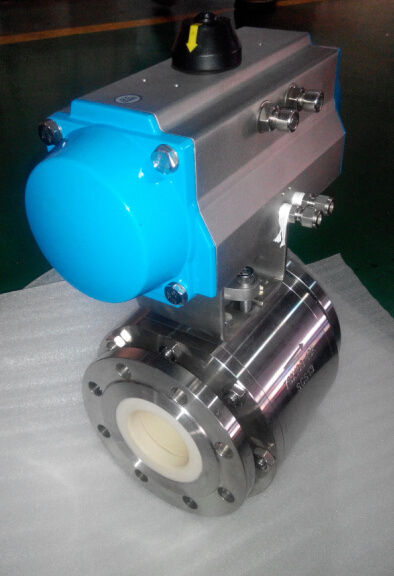

Pneumatic Ceramic Ball Valve for Ash, Slurry, Acid. Anti-corosion and wear-resisting,
DN15~250
Product Description:
1.Trim components of ceramic ball valve adopt Alumina or zirconia ceramic with high chemical stability and hardness (HRC88),only inferior to diamond. The ceramic lined valve has very good performance on abrasion erosion, and corrosion resistance, and excellent heat-shielding, electric insulation.
2.The ball is made by advanced grinding equipment and advanced process technology that can ensure high precision ball roundness, good surface. The self-lubricating capability of ceramic ensures the good sealing after polishing, which radically changed the defects that metal hard sealing valve has such as big torque, non-corrosion-resistant sealing surface.
3.Ceramic valve adopts new high-tech type structural ceramic material as sealing and wearing parts,which can improve abrasion and corrosion resistance, and sealing performance, prolonging lifespan, 2-4 times of lifespan than Titanium Alloy and Monel valve. Using ceramic valve can reduce repair or replacement costs and improve safety, stability of operating system.
4.This valve fit in granule medium of high hardness, or medium with erosion soft granule. Nominal pressure PN10-PN40, applicable temperature ≤200ºC. Manufacture and design accordance to GB,JIS, API standards.
The Advantages of Ceramic Valve
| Prod Model: | Q641TC |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: | F304+Ceramic |
| Pressure: | JIS10k |
| Actuator: | Pneumatic |
| Diameter: | Dn15~250 |
| Connection Form: | Flange |
| Channel: | Straight Through Type |
| Structure: | Flexible Ball Valve |
| Type: | Floating Ball Valve |
| Application: | Industrial Usage |
| Material: | F304+ Structural Ceramic |
