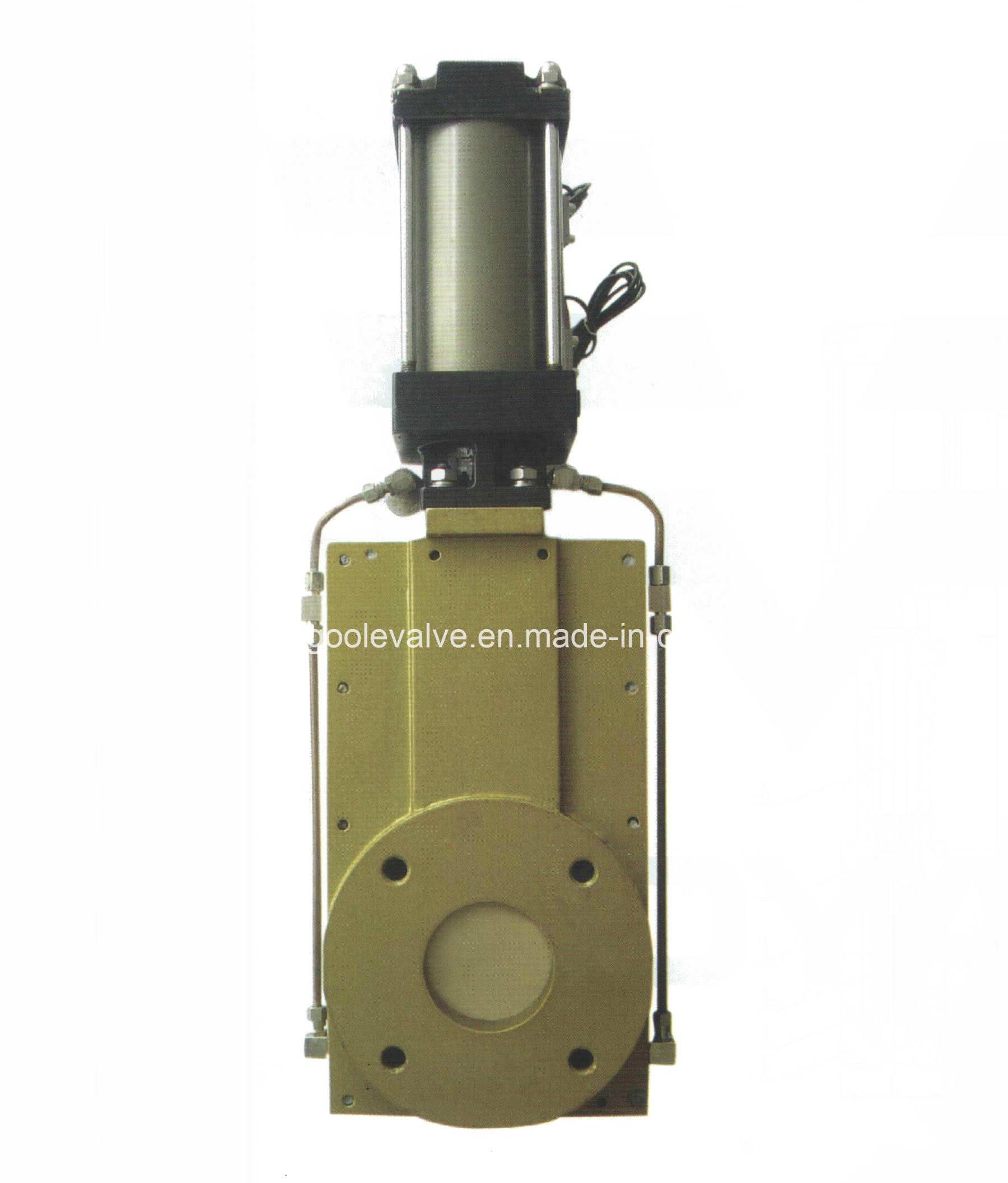

Pneumatic Ceramic Single Disc Gate Valve(GZ643TC)
Characteristics:
This Pneumatic Ceramic Single Disc Gate valve is used as an feed valve for storehouse pumps of dry ash systems in power plants, which is applicable for high-hardness granular media, or used as an on-off on pipelines of abrasive dry dust or vapor in mines, papermaking, chemical engineering and so on. Its nominal pressure is 1.0MPa, and applicable temperature is below 150 Deg C.
The sealing surface adopts hard seal, and all medium-contacting parts are made of structural ceramic with extremely high chemical stability and hardness and a service life 510 times of that of those valves made of common materials. It brings about huge ecomonic interest to users thanks to its extremely strong resistance to abrasion, corrosion and erosion, good heat insulation and small thermal expansion.
Its feed inlet is fully through without any blocks, and it has an automatic compressed air anti-blcikage blowing unit, with little ash sezure of accumulation.
It adopts a high-grade toughened structural ceramic seal, featuring high mechanical strength, strong abrasion resistance, a long service life and a compact structure, which can be installed at any angle.
Special ceramics is different from general ceramics, its hardness even more than steel,
second only to diamond, and corrosion resistant, high temperature resistant!!!!! "" metal
valve with long easy to produce the gap, ceramic valve is not. Because of wear-resisting,
anti-corrosive, sealing strong, ceramic water valve very water saving. "" our valves can be
used 500000 times, if every switch 60 times, can use 22.8 years, this is metal valve can not do it. "
Yongjia Goole Valve Co., Ltd is a specialized and modernized company. As industrial valves, filters and pipe fittings supplier and project service provider, we are willing to provide you with high quality and perfect fluid control solutions, to create a new intelligent system with high efficient, energy saving and environmental protection characteristics, so as to help you make full use of your energy.
We manufacture and offer:
Safety relief valve(Our hot products, we have price & performance advantages about safety valves, and we can offer you the best price and quality you want): Spring loaded safety valve, high pressure and high temperature safety valve, pilot operated safety valve, DIN Standard Safety Valve, etc...
Pressure Reducing Valve: Pilot Operated reducing valves, Direct Acting and Bellow Type Reducing Valves. etc.
Steam Trap: Free Float steam trap, Lever Ball Float steam trap, thermodynamic and thermostatic steam trap, inverted bucket steam trap, etc.
Besides, Other valves and pipe fittings like DIN Bellow sealed globe valves, Y Type Strainer also can be offered by us.
Our products are widely used in petroleum, chemical, metallurgy, power stationand some other fields. We can also design and manufacture the non-standard products according to Customers' requirements.
Our Products are in strict accordance with ISO 9001 International Quality Management System. We also have a complete inspection system to ensure the quality of our products. From the Market Researching to Designing and developing, from the material purchasing to furnishing, inspection and testing, from delivery to after sale service, every step is processed under the Standard Management. In order to produce the superior industrial valve and let the national-made valve replace imported valve, we always stick to the following principles: Ensure the Quality for Survival, Ensure the Continuous Innovation for Development, and ensure the high efficient service for Customers' satisfaction.
We would like to serve our esteemed customers with superior products, reasonable price and complete sales services. We pledge we will be your most reliable business partner always.
