The normal use of 10 million times above life.
Low power consumption, quick response.
Can work long time no damage
Oil Seal frictional resistance is small, increase oil seal life.

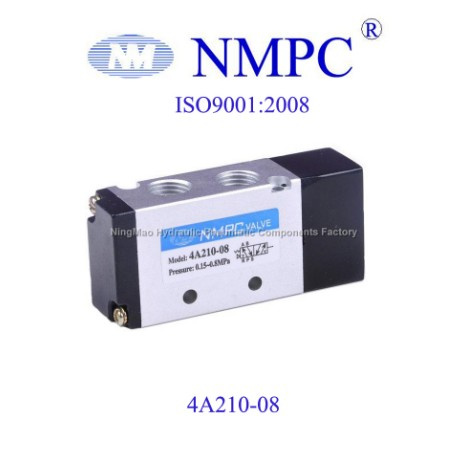

Model
4A210-08
Position and Way No.
Two-position Five-way
Effective Sectional Area
16 mm²
Working Medium
40 Micron Filtered Air
Joint Pipe Bore
Air Inlet=Air Outlet=G1/4" Exhaust=G1/8"
Motion Pattern
Inner Guide Type
Working-pressure
0.15~0.8Mpa.
Max. Pressure Resistance
1.2Mpa
Operating Temperature
5~50° C
Voltage Range
-10%~+10%
Protect Class
IP65
Power Consumpton
AC: 4.5VA DC: 3W
Insulation
F Class
Wiring Form
Lead Wire or Connector type
Highest Action Frequency
5Cycle/sec
Shortest Excitation Time
0.05Second.
Ningmao Hydraulic Pneumatic Components Factory is a factory professionally producing pneumatic components. The products are mainly including air source treatment units, pneumatic control components, pneumatic actuators, and pnematic accessories, etc. With reliable are widely used in such fields as metallurgy, food, textile, machinery, chemistry and electronics, etc.
Since it was founded, have been pursued, integrity, quality, service principle. We adhering to the "customer first, forge ahead" business philosophy, adhere to the "customers first" principle to provide our clients with physical services. Meanwhile, we established strict quality control procedure, strictly conforming to the demands of ISO9001 Quality Managing System.
Our factory is a modernized enterprise integrating product developing, producing&processing, managing&selling, with several years producing experience. The factory is located in the beautiful national 4A-level scenery spot district with deep cultural details Xikou.
With good quality, resonable price, and completed service, we sincerely welcome clients both home and abroad for visting and business negotiation.
