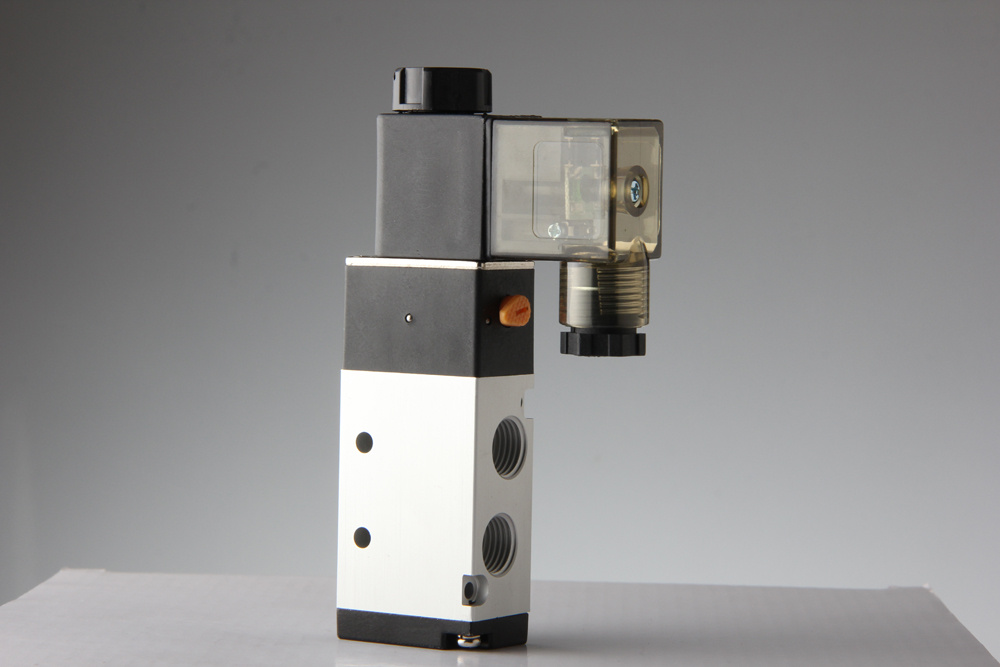

Pneumatic Control Valve

Pneumatic Control Valve
Price: US $ 3.1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Directional control valves are one of the most fundamental parts in hydraulic machinery as well and pneumatic machinery. They allow fluid flow into  different paths from one or more sources.
Valve boies are mirror finished and Hard oxidation.
Low power consumption, fast response, import oils seals with longer service life.
Coils with DIN connection or flying leads

Drive TypePilot & Solenoid
MountInline or Manifold
WiringDIN Connector with LED
InsulationF Class
Water/Dust Protection IP65
OverrideManual, Locking (3V, 4V Series)
Pressure22 - 116 PSI (1.5 - 8 Bar)
Temperature-5~50 Celsius degree (41 - 122 Fahrenheit degree)
Voltage Tolerance¡À10% of Rated Voltage
Highest Action Frequency6 cycles/sec

ModelDescriptionThreadFlow (Cv)
4A210-065 way 2 position Single Head 1/80.78
4A220-065 way 2 position Double Head 1/80.78
4A230C-065 way 3 position Mid-position Closed  1/80.67
4A230E-065 way 3 position Mid-position Vented 1/80.67
4A230P-065 way 3 position Mid-position Open 1/80.67
4A210-085 way 2 position Single Head 1/40.89
4A220-085 way 2 position Double Head 1/40.89
4A230C-085 way 3 position Mid-position Closed  1/40.67
4A230E-085 way 3 position Mid-position Vented 1/40.67
4A230P-085 way 3 position Mid-position Open 1/40.67
4A310-085 way 2 position Single Head 1/81.39
4A320-085 way 2 position Double Head 1/81.39
4A330C-085 way 2 position Mid-position Closed 1/81.00
4A330E-085 way 3 position Mid-position Vented 1/81.00
4A330P-085 way 3 position Mid-position Open1/81.00
4A310-105 way 3 position Single Head 1/81.67
4A320-105 way 2 position Double Head 1/41.67
4A330C-105 way 3 position Mid-position Closed  1/41.00
4A330E-105 way 3 position Mid-position Vented 1/41.00
4A330P-105 way 3 position Mid-position Open1/41.00
4A410-155 way 2 position Single Head 1/22.79
4A420-155 way 2 position Double Head 1/22.79
4A430C-155 way 3 position Mid-position Closed  1/21.68
4A430E-155 way 3 position Mid-position Vented 1/21.68
4A430P-155 way 3 position Mid-position Open 1/21.68

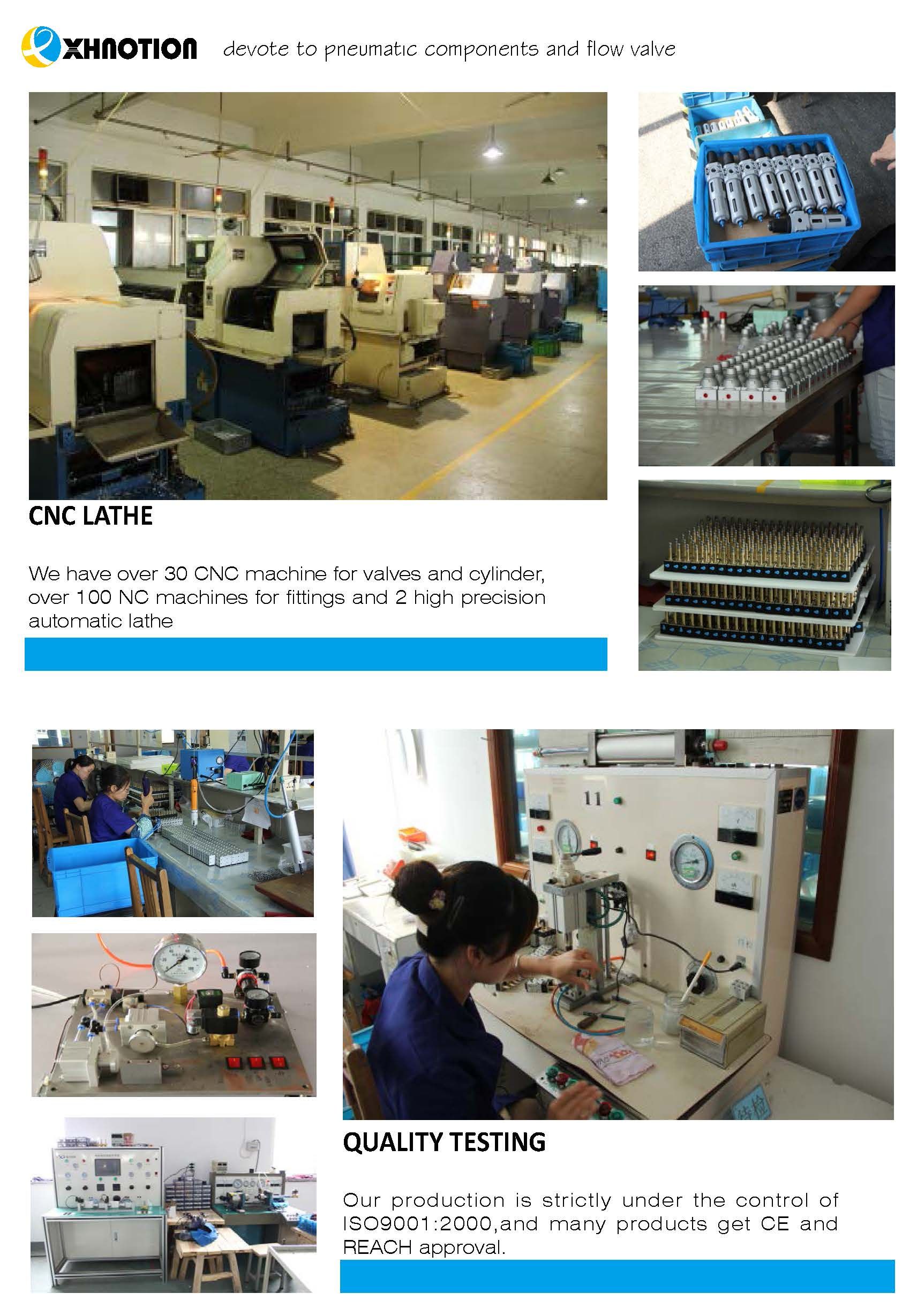

 1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.
2) Aluminum Surface is polished and hard anodized.
3) To import Germany grease to provide firm less-friction support
4) O-ring is imported from Taiwan.
5) 100% leakage testing under low pressure and high pressure.
6) 1 year quality assurance after shipment.
7After sales technique support

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular valve 1 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.

Prod Model: 4A210-08
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thread: 1/4,1/8,1/2
Regular Voltage: 12VDC, 24VDC, 110VAC, 220VAC
Flow(CV): 0.78,0.67,0.89,1.39,1,1.67,2.79,1.68
Connection Form: Thread
Type: Pilot Operated
Valve Structure: Pilot Piston Structure
Power Supply: DC Solenoid Valve
Application: Household Usage
Material: Aluminum
Usage: Directional
XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below items

Pneumatic fittings, plastic, brass, stainless steel push in fittings

Pneumatic quick coupling, air tool kits, air blow gun

Pneumatic muffler, silencer, filter

Air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc

Solenoid control valve for water, air, diesel, oil

Air cylinder, air preparation, pneumatic directional valve

Modular hose, water push in fitting

Ball valve, brass connector


1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder

Our production is strictly under the control of ISO9001: 2000, and many products get CE approval. Since founded in 1997, we have marketed over 70 countries and firmly established our reputation for the excellence of our design, quality, service and pricing.
