Pneumatic Diaphragm Control Valve
Feature
Compact structure, fewer parts, light weight
Wiring is simple, easy to operate
Adjusted performance, small pressure loss, flow ability
Able to apply a small amount of a certain viscosity and fiber medium
Parameter
Actuator Pneumatic, Pneumatic+Handwheel
Control On-off, Modulating, Inteligent
DN 20~250mm
Pressure PN1.6~25.0Mpa, ANI150~1500Lbs, JIS10~100K
Temperature Std: -20~200° C, -40~250° C, -60~250° C
Cooling type: -40~450° C, -60~450° C
Ambient temperature -20~55° C
Flow characteristics Straight line, Equal percentage
Inherent rangeability 50: 1
Gas supply 0.14~0.3Mpa
Input signal 4~20mA, 1~5V
Output signal 4~20mA, 1~5V
Connection Flange
Structure Standard Type, Bellows Seal Type, Cooling Type
Body & Cap Material WCB, WCC, WC6, CF8, CF8M, CF3, CF3M
Stem Material 304, 316, 316L 17~4pH
Spool Material 304, 316, 316L, 17~4H, Surfacing Stellite
Packing Material PTFE, RTFE, Flexible graphite
Medium Gas, Water and Oil, etc
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
Remark Commissioning has been completed in the factory
Connected to the gas source and the input signal can be used

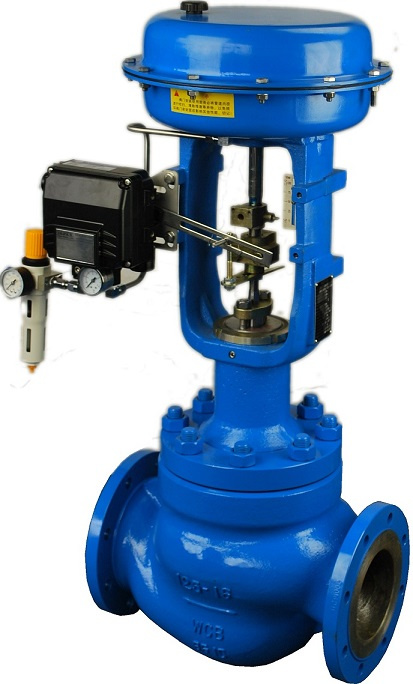

LPH11 Pneumatic Diaphragm Control Valve
Shanghai Lapar Control Valve Co., Ltd. is an Italian company. In 2005, we set up our factory in China.
Our products include electric pneumatic ball valve, butterfly valve and control valve. We are committed to providing complete sets of control valves for customers. We strictly control the quality and only choose outstanding accessory suppliers, including Fisher, and Yama.
With nearly 10 years' experience, excellent product quality and perfect after-sales service, we provide our products for nearly 1, 000 enterprises, such as Yihai Kerry Group, Baosteel, and China Oil Corp, covering chemical, petroleum, environmental protection, mechanical, electrical, food, pharmaceutical and other industries.
Lapar valves have got the trust of a vast number of customers. Tell us the details of your requirements, and we will provide perfect solutions for you.
