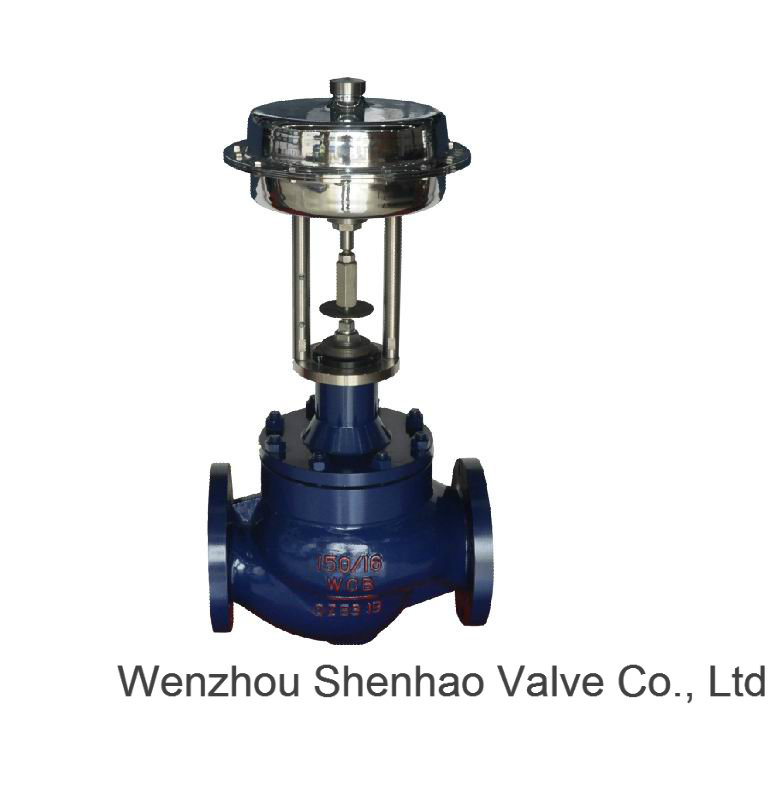

The K301 valve, characterized by top-guide, has streamlined fluid passage and owns the features of simple structure, mass flow and reliable capability. Unique design of the cage enables the valve to be applicable to severe services, such as erosion and cavitation. Multi-spring pneumatic diaphragm actuator or electric motor supplies the power of the valves's action. Pipeless connection makes the valve more compact, more convenient to assemble and disassemble, and have higher reliability.
Body size | NPS | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
Max.Stroke | mm | 16 | 30 | 60 | 100 | 120 |
Press.rating | ANSIClass | ANSI B16.5 ANSI150\ANSI300 |
PN(Mpa) | JB/T79-94 HG20592 PN1.6\PN2.5\PN4.0 |
Bonnet type | Standard type | -46ºC~300ºC |
Fin-extension type | 300ºC-530ºC |
Plug form | Parabolic plug |
Charateristics | Equal percentage, linear, on-off |
Leakage class | Metallic seal , according with ANSI B16.104IVand V |
Soft seal, according with ANSI B16.1VI |
Baody connections | Flanged | RF\FM\RTJ |
Welded | SW(DN≤50)\ BW(DN≥65) |
Face to face dimension | According with IEC 534-4-1976 for ANSI\DIN3202-F1 for PN |
Actuator | Diaphragm type | Multi-spring-30ºC~+80ºC | Reverse action (Signal increase to valve open) Direct action (Signal increase to valve shut) |
Electric Motor type | EXP. proof -20ºC~+60ºC | Reverse action (Signal increase to valve open) Direct action (Signal increase to valve shut) |
Perf. index | Linearity | ≤±1% (with positioner) |
Hysteresis | ≤±1% (with positioner) |
Accessories | Positioner, Air-set, Hand wheel, Solenoid, Limit switch, Transmitter, Pneumatic accelerator, quick exhaust valve |
