Sanitary Diaphragm Valve, Manual Diaphragm Valve, Stainless Steel Diaphragm Valve, Pneumatic Diaphragm Valve, 3 Way Diaphragm Valve
Features
1. Electro and Mechanical Polishing
2. Sealing Material: PTFE, NBR, EPDM, FPM
3. Manufacture Standard: GB, DIN, ISO, SMS
4. Zero Leakage
5. Connection: Welding, Clamp
6. Tpye: Double-acting, Single-acting
Specifications
Manual Diaphragm Valve
1). Nominal Diameter: DN15-50
2). Pressure Range: 0-16bar
3). Medium Temp.: -10°C-150°C
4). Ambient Temp.: -10°C-60°C
5). Valve Body Material: Stainless Steel
6). Sealing Material: NBR, EPDM, FPM
7). Connection: Welding

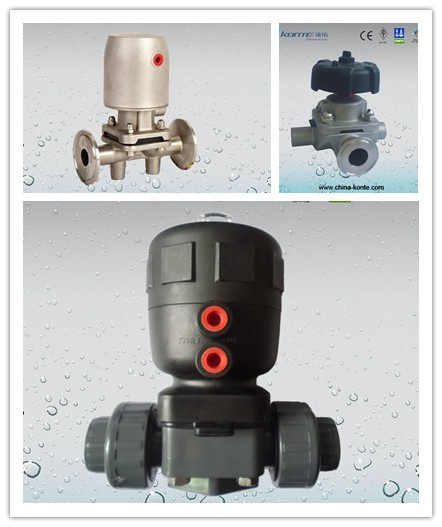

Pneumatic Diaphragm Valve (Clamp)
1). Nominal Diameter: DN15-50
2). Pressure Range: 0-16bar
3). Medium Temp.: -10°C-+180°C
4). Ambient Temp.: -10°C-+60°C
5). Valve Body Material: Stainless Steel
6). Sealing Material: NBR, EPDM, FPM
7). Actuator Cover: PA
8). Operating Pressure: 3-8bar
8). Type: Single-acting, Double-acting
Pneumatic 3-Way Diaphragm Valve
1). Inside and outside of valve body can be sterilized under high temperature
2). Driving Way: Pneumatic, normally closed (1), normally open (2), double direction (3)
4) .Max. Working Pressure: 10bar (Diaphragm is EPR or FPM), 6bar (Diaphragm is PTFE for one-side use)
5). Operating Pressure: 4-6bar (1), 3-4bar (2 or 3)
6). Diaphragm Material: EPDM, FPM, PTFE
7). Valve Body Material: SS316
8). Connection: Welding, Clamp
9). Manufacture Standard: GB, DIN, ISO, SMS
Pneumatic Diaphragm Valve (Stainless Steel Head/Plastic Head)
1). Inside and outside of body can be sterilized at high temperature
2). Driving Way: Pneumatic
3). Max. Working Pressure: 10bar (Diaphragm is EPR or FPM)
4). Max. Working Temp.: 150°C
5). Diaphragm Material: EPR, FPM
6). Valve Body Material: Stainless Steel, 316L
7). Manufacture Standard: GB, DIN, ISO, SMS
Pneumatic PVC Diaphragm Valve
1). Nominal Diameter: DN15-50
2). Pressure Range: 0-16bar
3). Medium Temp.: - 10°C~+60°C
4). Ambient Temp.: - 10°C~+60°C
5). Valve Body Material: UPVC, CPVC
6). Sealing Material: NBR, EPDM, FPM
7). Actuator Material: PA
8). Operating Pressure: 3-8bar
9). Connection: Double Union
10). Type: Double-acting, Single-acting
Contact
Thanks for your visiting.
If you have any questions about our products or company, please do not hesitate to contact us.
Contact Person: Cathy Zou
Brand: | KT/OEM |
Applicable Media: | Water, Oil, Gas, Nitric Acid, Acetic Acid |
Certification: | CE/API/DNV/FDA/ISO9001-2008 |
Sample Testing: | One Sample for free( Under $10),Freight Collect |
Packing: | Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
Payment: | T/T, L/C, D/P, Western Union, Paypal |
Port: | NINGBO/SHANGHAI, Customers' Request |
Delivery Time: | Within 35days after receiving T/T deposit Payment |
Term of Delivery: | FOB/CNF/CIF, Customers' Request |
