Pneumatic Double-Seated Control Valve (GAZJHN)
| Price: |
US $ 1-1/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |

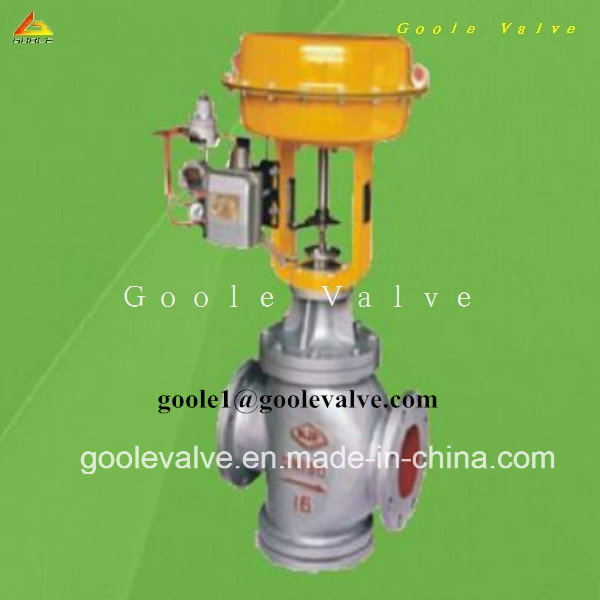

GAZJHN Pneumatic diaphragm double-seated control valve.GAZJHN Pneumatic diaphragm double seated control valve.The valve has double seats.The fluid outflow through the valve core of the upper and lower sealing surface.The unbalanced pressure is small.It is a balanced structure,which are widely used in petroleum,chemical,pharmaceutical,metallurgical,power plants,such as the industrial sector,to control of gas liquid medium such as steam.

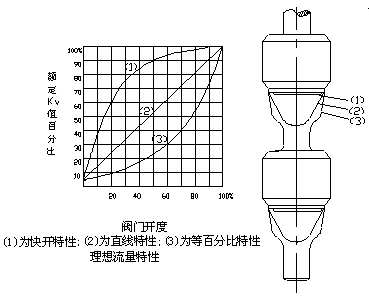

Valve Body.Structure:flowing through type globe valve with double-seated.DN:25~300mm.PN:1.6~10.0Mpa or class 150~class 600.Connections:flanged type.Material:WCB,HT200 ZG230-450 ZG1Cr18Ni9Ti.ZG0Cr18Ni12Mo2Ti. Upper Cover.Normal Temp:-20°C~+200°C.Heat Radiation Type:-40°C~+450°C.Gland Connection:bolted type.Packing:V type PTFE.FLEXIBLE GRAPHITE.S.S BELLOWS. Valve Assembly. Valve Core:Double guiding&double-seated plug type.Cv Features:Linear,Equal Percentage or Quick opening.Material:1Cr18Ni9Ti0Cr18Ni12Mo2Ti.
Actuator. Model:Multi-spring diaphragm type actuatorMaterial of the diaphragm:NBR with reinforced polyester fabric.Spring range:0.02~0.1/0.04~0.2Mpa.Air Supply:0.14/0.16/0.28Mpa.Air Supply Connector:M10*1.Working Temp:-30~+70°C.Valve Acting Type:air to close or air to open.Accessories:positioner,,hand wheel.Parameters:(with positioner.)Leakage:<0.5%×Kv.Intrinsic Erro:+/-1.5%.Controlling Range:30:1.Kv,Movement&Allowable Differential Pressure. | DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| Size of seat(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| Flow coefficient Kv | 4 | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 |
| Movement(mm) | 16 | 25 | 40 | 60 |
| Allowable differential pressure(Mpa) | 5.8 | 4.9 | 3.8 | 2.9 | 4.0 | 3.3 | 2.6 | 3.6 | 3.0 | 2.3 |
| Note:It refers to the differential pressure when the valves in open position. |

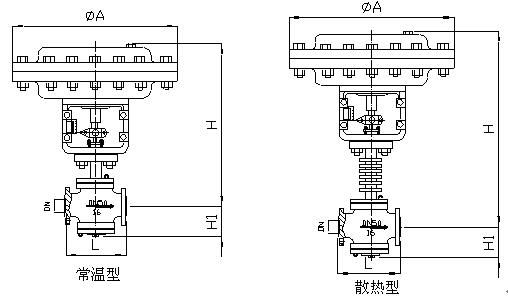

Double Seated Control Valve Dimension.
| DN | Actuator | H | øA | H1 | L |
| Normal TEMP | Heat Radiator Type. | PN1.6 | PN4.0 | PN6.4 |
| 25 | ZHA22 | 498 | 648 | 285 | 117 | 185 | 190 | 205 |
| 32 | ZHA22 | 501 | 651 | 285 | 120 | 200 | 210 | 220 |
| 40 | ZHA22 | 522 | 691 | 285 | 139 | 220 | 230 | 240 |
| 50 | ZHA22 | 530 | 699 | 285 | 144 | 250 | 255 | 265 |
| 65 | ZHA34 | 645 | 815 | 363 | 188 | 275 | 285 | 295 |
| 80 | ZHA34 | 661 | 835 | 363 | 208 | 305 | 310 | 325 |
| 100 | ZHA34 | 687 | 887 | 363 | 220 | 350 | 355 | 370 |
| 125 | ZHA34 | 1234 | 1444 | 363 | 270 | 410 | 425 | 440 |
| 150 | ZHA45 | 1242 | 1492 | 470 | 280 | 450 | 460 | 475 |
| 200 | ZHA45 | 1394 | 1654 | 470 | 320 | 550 | 560 | 570 |
| Prod Model: |
GAZJHN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: |
Control Valve |
| Actuator: |
Pneunamic |
| Connecting Type: |
Flange |
| Material: |
Cast Steel/Stainless Steel |
| Medium: |
Gas,Liquid,Steam,etc. |
| Usage: |
Flow Control |
| Application: |
Industry |
