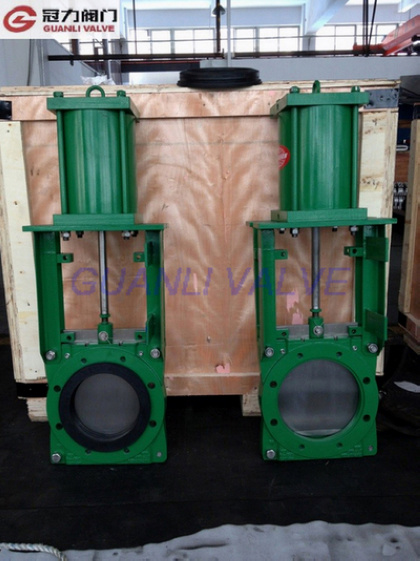

Pneumatic Ductile Iron Slurry Knife Gate Valve
| Price: |
US $ 480.0244-530.244/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Pneumatic Ductile iron Slurry Knife Gate Valve:1. Material available: Ductile iron GGG40, stainless steel CF8&CF8M
2. Pressure rate: Class 150
3. Size range:2"-24"
4. Operated type: pneumatic

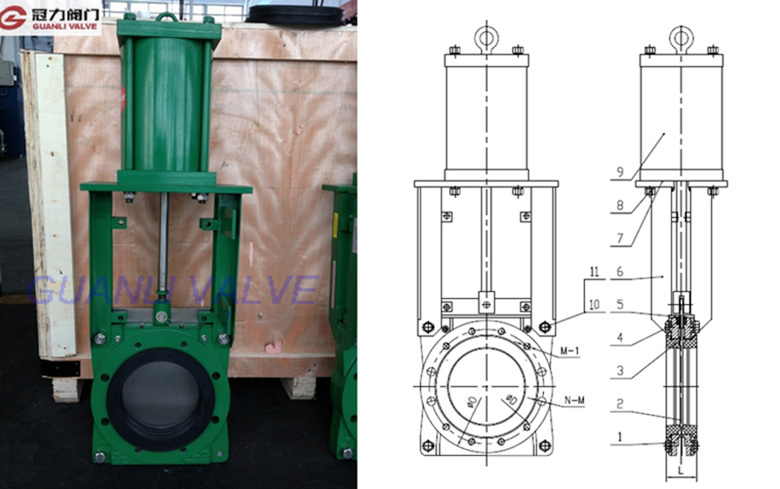

5. Seat:EPDM / NBR/ VITON/ METALWelcome to inquiry.| NO | Part Name | Materials |
| 1 | Body | GGG40 |
| 2 | Gate | SS304/SS316 |
| 3 | Seat | EPDM/NR |
| 4 | Packing | EPDM/NR |
| 5 | Packing Gland | WCB |
| 6 | Stem | ANSI 1045 |
| 7 | Support Plate | St33 |
Our Services 1.Quality & Service: Our top priority has always been providing our clients with great quality products and superior customer service. 2.Quick Lead Time: We're dedicated to providing the quickest turnaround times and work very hard to ensure that all of your deadlines are met. 3.Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings over to you! 4.Quantity Guarantee: Period 12 months from the date of shipment. If the valves determined to be defective, we will replace the defective part without charge .After warranty period, you are requested to pay for the labor charge.FAQThe following details should be dated in your enquiry:1) Size2) Class3) Body Material4) Trim Material (Internal parts)5) Connection type6) Operated type7) Sealing face8) Temperature9) Medium10) Design standard; Connection Standard
| Prod Model: |
GLS673 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2"-24" |
| Rate: |
150psi |
| Connection: |
Pn10, ANSI |
| Stem: |
ANSI1045 |
| Seat: |
Nr, EPDM |
| Color: |
Blue, Black as Requested |
| Package: |
Plywood Case |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Minging, Cinder, Slurry |
| Material: |
Ductile Iron |
| Connection Form: |
Wafer |
| Usage: |
Minging, Cinder, Slurry |
Established in 1992 and re-established in 2004, Zhejiang Guanli Valve Co., Ltd. Covers an area of 7, 500 square meters located at Dongou Industrial Zone in Wenzhou. Our company is located in Wenzhou, only 500 kilometers from Shanghai Pudong Airport.
We are a professional manufacturer of industry valves according to API, DIN, JIS standards. Our products include knife gate valves, ball valves, gate valves, globe valves, check valves and butterfly valves. Our valves are made with materials of WCB, WC6, WC9, LCB, 304, 316, 304L, 316L and F51. They are widely used in many fields, such as petroleum, chemical, natural gas, power, feed water, steel and metallurgy.
If you are interested in any of our products, please feel free to contact us for more information.
