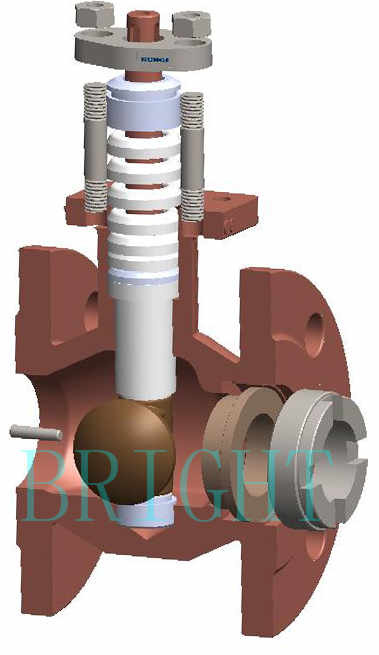

Pneumatic Eccentric Plug Rotary Control (Shut-off) Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
1. Product Introduction
HB2810 Pneumatic Eccentric Plug Rotary Control (Shut-off) Valve is applicable to the control and shut-off of media with high viscosity, fibre and granule for chemical, Petroleum, coal mining, metallurgy, paper making, water treatment and other industries. It features long lifespan, zero leakage(hard seal),high security, high seal performance of packing, large CV value and exquisite appearance and high quality of interior.
Patent No. 2011203278025, 2012200387951, 2012200388259, 2011303050512, 2012300193858, 2012300193839, 2012301852104, 2012202352815, 2012202576233, 2012202575404, 201320895257.9, 201320895258.3
2. Main Specifications
Flow characteristics |
Almost Eq% |
Rated stroke | (Shut-off type):0~90°(Adjusting type):0~90° |
| Leakage |
Soft sealing | DN25~400 | Class VI |
| Hard sealing | ≤DN200 | Class VI |
| ≥DN250 | Class V
Class VI for optional) |
| Rangeability | 100:1 |
3. Body Specifications| Model | HB2810 |
Nominal pressure | PN1.6 | Class150~Class600 |
Norminal dia. | DN25~DN400 | 1~16 |
Plug type |
Eccentric Eccentric spherical crown |
| Connec.type | Flange (RF) |
Face to face |
Refer to Table 10 of the Catalogue for Pneumatic Eccentric Plug Rotary Control (Shut-off) Valve |
| Body material | WCB,CF8,CF8M,CF3M |
4. Applicable Standard
|
Chinese Standard |
American Standard |
Quality guarantee | ISO9001,TS2710J59 | ISO9001 |
| Design and manufacture | GB/T12238 ,MSS-SS-68 | API 6D,ANSI B16.34 |
| Flange standard | GB9112-912,HG20592-2009 | ASME B16.5 |
| Face to Face | GB12221 | IEC 60534-3-2:2001 |
| Inspection & test | GB/T13927 | API 598 |
5. Temp. Range of Main Material for Body
Material table| ASTM | A216-WCB | A351-CF8 | A351-CF8M |
| GB | ZG230-450 | ZG0Cr18Ni9 | ZG00Cr18Ni12Mo2Ti |
| JIS | SCPH2 | SCS13A | SCS14A |
| NOTE |
Same as ZG230-450 |
Same as 304SS |
Same as 316SS |
| Prod Model: |
HB2810 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter: |
15 Mm (1/2")-400mm(16") |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Application: |
Water Industrial Usage |
| Material: |
CS, S.S, Alloy Steel |
| Nominal Pressure: |
1.6MPa(Cl150)-6.4MPa(Cl600) |
| Structure: |
Eccentric Eccentric Spherical Crown |
| Type: |
Eccentric Plug Rotary Control (Shut-off) Valve |
| Function: |
Control and Shutoff |
| Temperature: |
Customized |
