Product Explanation:

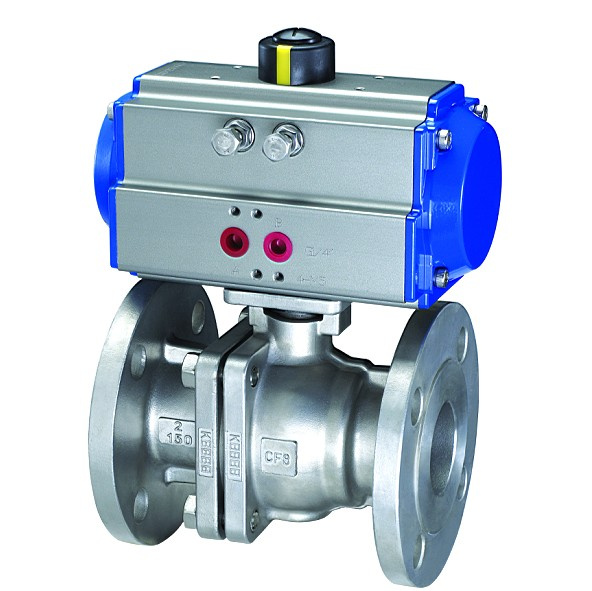

Pneumatic Flanged Ball Valve
Valves Detailed Product Description
Two-piece Body, Floating Ball, Buint-in ISO5211 direct mounting pad
Full silicasol technology
Full bore, Blow out Proof Stem
Fire safe design
Anti-static devices for ball-stem body
Double stem sealing to comply with TA-LUFT requirements
Pre-Load 2 belleville washer to self-adjust packing
Material of Body &Cap: WCB CF8(304) CF3(304L) CF8M(316) CF3M(316L)
ANSI Standards application
Design and Manufacture: API 608, ASME B16.34 Face to face(end to end): ASME B16.10
Flanged connection: ASME B16.5
Fire-safe: API 607, 4th 1993
Test and inspection: API 598, API 6D
DIN Standards application
Design and Manufacture: DIN3357/1 EN12516-1
Face to face(end to end): DIN3202 F1(DN15-DN100) F7(DN125-DN200)
Flanged connection: DIN2545 EN1092
Fire-safe: API 607, 4th 1993
Test and inspection: DIN3230/3 EN12266
Pneumatic actuator
RT series pneumatic actuators
It can be mounted the accessories as follow:
Limit switch
Air filter regulator
Manual override
Solenoid valve
| No. | Parts Description | Material |
| 1 | Body | CF8M | CF8 | WCB | Ti |
| 2 | Bonnet | CF8M | CF8 | WCB | Ti |
| 3 | Ball | SS316 | SS304 | Ti |
| 4 | Seat | PTFE RPTFE PPL |
| 5 | Nut | A193-B8 | A193-B7 | A193-B8 |
| 6 | Stem | SS316 | SS304 | 2Gr13 | Ti |
| 7 | Anti-Static | SS304 |
| 8 | Thrust Washer | PTFE Expanded Graphite |
| 9 | Packing | PTFE Expanded Graphite |
| 10 | Transition Washer | RPTFE Expanded Graphite |
| 11 | Packing Ring | SS304 |
| 12 | Belleville Washer | SS304 |
| 13 | Nut | SS304 |
| 14 | Loose Resistant Cover | SS304 |
| 15 | Nut | SS304 |
| 16 | Handle (1/2" ~3" ) | SS304 |
| 17 | Handle Cover (1/2" ~3" ) | Plastic |
| 18 | Stop Plate (1/2" ~3" ) | SS304 |
| 19 | Seal Washer | PTFE Expanded Graphite |
| 20 | Steel Tube (4" ~8" ) | Galvanizde Steel Tube |
| 21 | Spanner (4" ~8" ) | CF8 |
| 22 | Stop Bolt | SS304 |
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.
In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.
KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.
According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.
Welcome Friends to contact us from all over the world to establish business with us.
