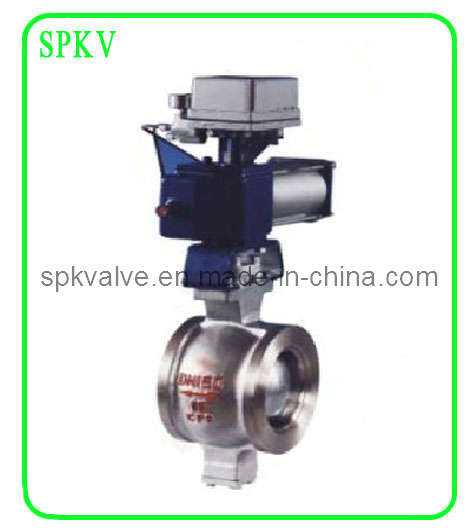

Pneumatic Half Ball Valve (98-HALF-F)

Pneumatic Half Ball Valve (98-HALF-F)
Price: Negotiable/Piece
Trade Terms: by sea, by air
Min Order: 100/Piece
Name: Ball Valve / Pneumatic actuated eccentric half ball type ball valve
Size Range: NPS 2"-18"
Pressure Range: Class 150-class 1500
Material: WCB, LCB, CF8, CF8M, SS304, SS316, F11, F22, etc.

Design & Manufacture Std.: API6D, API602, ANSI B16.34,
Face to Face Std.: ASME B16.10.
End Connection Std.: ASME B16.11, ASME B1.20.1, ASME B16.5, ASME B16.47, DIN2543-2551.

Test Standard: ISO5208, API 598, BS 6755.
Construction Type: Flange type, eccentric ball, butt weld type, etc.
Operation: Pneumatic.
NamePneumatic actuated eccentric half ball type ball valve
Size RangeNPS 2"-18"
Pressure RangeClass 150-1500
MaterialWCB, LCB, CF8, CF8M, SS304, SS316, F11, F22, etc
Construction TypeFlange type, eccentric ball, butt weld type, etc
Design&Manufacture StdAPI6D, API602, ANSI B16.34
Face to Face StdASME B16.10
End Connection StdASME B16.11, ASME B1.20.1, ASME B16.5, ASME B16.47
Test StandardISO5208, API 598, BS 6755
OperationPneumatic
Prod Model: 98-HALF-F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Stainless Steel
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Zhejiang Spark Valve Co., Ltd located in Wenzhou Bridge Industrial Zone Oubei, all valves have been put in storage before the strict testing to ensure the reliability of product quality. In recent years, the enterprises to strengthen the quality of management of technology products to improve the process, constant optimization of product mix, improve the scientific and technological content of products, so that steady improvement of product quality, reasonable structure, reliable performance, life characteristics and long. Enterprises have a sound quality assurance system and excellent after-sales service system.

Over the years, the companies always been the policy of carrying out the quality first policy, and further established the business in the valve industry leading level. Product implementation standard GB national standard and the United States, API, JIS and the user's requirements in accordance with the design and manufacture, the main products are ball valve, gate valve, globe valve, butterfly valve, check valve, such as more than 30 varieties, more than 1000 In specifications, materials used in WCB, WC6, WC9, CF8, CF3, CF8M, CF3M, 1Cr18Ni9Ti, 12CrMoV, ZG1Cr5Mo, ZG20CrMoV and so on, and with a manual, gear transmission, electric, pneumatic, hydraulic drives, etc., products throughout the country by the user's trust and praise.
