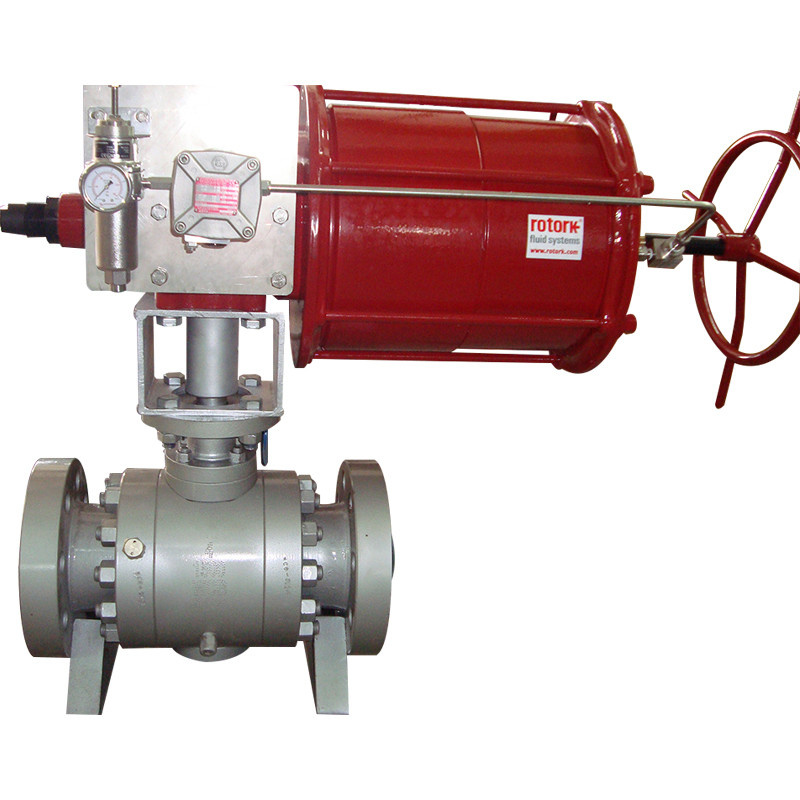

Pneumatic Operated Ball Valve (4", 1500LB)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Type: Ball valve
Size: 4
Rating: 1500LB
Body: A216 WCB
Ball: A182 F316
End cap: A 216 WCB
Bolt: A194 2H
Nut: A193 B7
Bonnet: A105
Spring: Inconel X-750
Stem: 17-4pH
O-ring: Viton
Design and manufacture: API 6D
Face to face dimension: ASME B16.10
Flange ends dimension: ANSI 16.5
Pressure test: API 6D
Fire safe: API 607
| Prod Model: |
4", 1500LB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Industrial Usage |
| Material: |
Cast Carbon Steel |
Jiaxing High Pressure & Performance Valve Co., Ltd. (originally Jiaxing Leyuan industry and trade co. Ltd), founded in 2001, is a scientific and technological innovation-oriented enterprise, which integrate valve design and development, manufacturing test, sales and service. The company is located in Xiuzhou District, Jiaxing City, Zhejiang Province, the center of the southeast coast of China and Yangtze River Delta. The transport is very convenient, to Shanghai and Hangzhou 1 hours by car, 30mins by train, General products of our company are gate valves, globe valves, check valves, ball valves, which fit in with GB, API, ANSI, BS and DIN; Commonly materials include cast iron, copper alloy, Carbon steel, stainless steel, dual-phase steel, low temperature steel and high temperature alloy Steel etc.
Our company has strong technical force, sophisticated production equipment and complete testing methods. For many years, we are devoted to the development and application of the products made of special materials, such as Titanium Alloy, Monel Alloy, Inconel Alloy, Hastelloy, Ni-base, Co-base carbide etc. Our company can also develop custom-made non-standard valve products applying to special conditions. Now we have API 6D, API607, ISO, etc. Certificate. Introduce new management system and quality control system, Guided by the concept of "Pursuit is endless" and the purpose of "quality-oriented, customer first", our company looks upon product quality and credibility as life and would like to provide you with high-quality products and thoughtful service.
