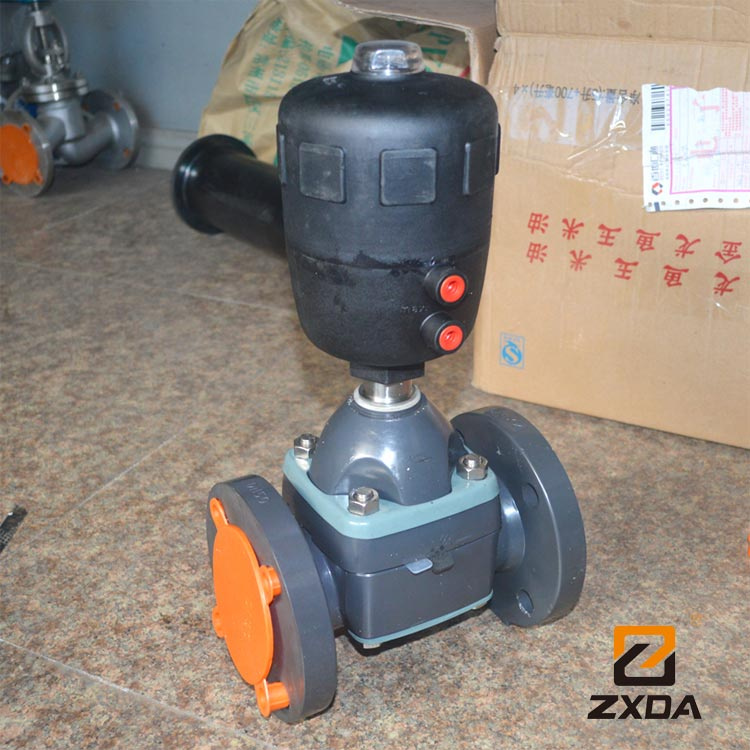

Pneumatic PVC diaphragm valve Corrosive resistant pneumatic diaphragm control valve
Product Parameter
Pneumatic PVC Diaphragm Valve
Nominal Diameter: DN15-50
Medium Temp.: - 10°C~+60°C
Ambient Temp.: - 10°C~+60°C
Valve Body Material: PVC
Sealing Material: NBR, EPDM, FPM
Actuator Cover:Polyamide PA
Operating Pressure: 6-10bar
Type: Double-acting, single-acting
Appliance medium : Water ,air,oil etc.
1 | Product Name | UPVC Diaphragm valve |
2 | Nominal Pressure(Mpa) | GB 1.0-1.6Mpa,ANSI class125,150 |
3 | Nominal Diameter(mm) | DN 25~100 |
4 | Working Temperature | -40-120°c |
5 | Applicable Medium | water, steam, oil etc |
6 | Material | UPVC PVC |
7 | Standards | ISO CE |
8 | Driving way | Pneumatic |
9 | Delivery time | 20-30 days after receiving the deposit |
10 | Payment | T/T, 30% full deposit advanced & the balance before shipment |
e
Features:
1.healthy and non-toxic
2.no disagreeable odor
3.convinient to install and low construction cost;
4.different colors is available
5.long working life
Corrosive resistant plastic diaphragm valve
1. Item: High quality PVDF diaphragm valve
2. Size: DN15-DN300
3. Material: UPVC, CPVC, FRPP, PVDF, PPH
4. Standard: HG, ANSI, DIN, JIS
5. Type: Flange
Body material | Operating Temperature | Maximum working pressure | Jointing Method |
|
PPH | -20~95 | PN10 | Butt Fusion |
RPP | -20~80 | PN10 | Butt Fusion |
PE | -30~120 | PN10 | Butt Fusion |
PVDF | -40~65 | PN10 | Butt Fusion |
U-PVC | 0~50 | PN10 | Butt Fusion |
C-PVC | 0~80 | PN10 | Butt Fusion |
Serial Number | Parts Name | Material |
1 | Body/Bonnet | PPH\RPP\PE\PVDF\CPVC\UPVC |
2 | Diaphragm | EPDM\FEP\PTFE |
3 | Stem | Stainless steel |
4 | Yoke nut | Cast iron |
5 | Disc | FPM\EPDM |
6 | Handlweel | ABS |
DIN(mm) |
Nominal dimension | dimension(mm) | Working Pressure (Mpa) | Weight(Kg) |
d | DN | NPS | L | D2 | H | H1 | H2 | L2 | M | Lift=Hx | PE\PPH\RPP | PVDF | CPVCUPVC |
20 | 15 | 1/2 | 130 | 80 | 90 | 14 | 12 | 25 | M6 | 7 | 1.0 | 0.30 | 0.43 | 0.35 |
25 | 20 | 3/4 | 150 | 80 | 101 | 18 | 12 | 25 | M6 | 10 | 1.0 | 0.70 | 0.59 | 0.48 |
32 | 25 | 1 | 160 | 94 | 117 | 22 | 12 | 25 | M6 | 12 | 1.0 | 0.80 | 1.10 | 0.89 |
40 | 32 | 11/4 | 180 | 117 | 127 | 26 | 15 | 45 | M8 | 16 | 1.0 | 0.80 | 1.26 | 1.01 |
50 | 40 | 11/2 | 200 | 117 | 139 | 32 | 15 | 45 | M8 | 19 | 1.0 | 2.00 | 1.84 | 1.48 |
63 | 50 | 2 | 230 | 152 | 172 | 39 | 15 | 45 | M8 | 27 | 1.0 | 1.70 | 3.34 | 2.67 |
