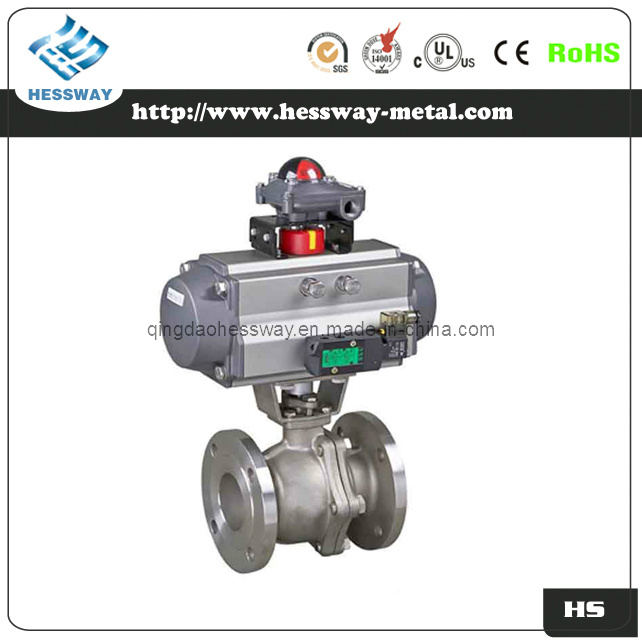

Pneumatic Regulating Valve Ball Valve with flange
Pneumatic ball valve switch consist of high accuracy pneumatic actuator and precision casting ball valve. Mainly divided into pneumatic soft sealing ball valves and pneumatic metal sealed ball valve two types. Pneumatic switch ball valve has a compact structure, small volume, reliable operation, low coefficient of flow resistance, good sealing, easy maintenance, easy installation, strong adaptability, etc.
Pneumatic ball valve can realize on-off when matched with moving limit switch, solenoid valve, pressure reducing valve, and 0.4 0.7 MPa gas source. And output two passive contact signal to control valve on or off. Pneumatic type O shape ball valve is particularly suitable for medium which is viscous, containing particles and fiber properties. Pneumatic switch ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, paper and other industrial automatic control system, as long-distance centralized control or local control system.
Technical characteristics
Multifunction position indicator, local showing, conform to standard VID/VIE3845, NAMUR, can install and output all the accessories like limit switch box, electric positioner, location transducer.
Air source port conform to NAMUR standard, and install NAMUR standard solenoid valve directly.
Composite bearing, piston leading ring and Output shaft bearing at Gear back side is rubbing protection of metal to metal, long service life.
All fixing material is stainless steel, anticorrosive.
Specifications
Pneumatic regulating valve Flange ball valve
1)Product size:1/2'' to 12''
2)Stable one piece
3)Seal for metal,PTFE
4)With positioner, limit switch box,etc
Widely used in petroleum, chemical, pharmaceutical, light industry, automatic control system
Design Standard
Design basis: GB/T12237, ANSI B16.34, API 608
Structure length: GB/T12221, ASME B16.10, JIS B2002
End flange: GB/T9113, ASME B16.5, JIS B2212/JIS B2214
Wall thickness: ASME B16.34
Fire test: API 607 4th 1993
Detection and Test: GB/T 13927, API598, JIS B2003
Electric Explosion-proof Ball Valve Actuator technology parameters |
Type of actuator | 3610R series actuator parameters | HQ series actuator parameters |
Power voltage | Standard:220VAC Optional:110V AC \380/440V AC three-phase\24V/110V/220V AC |
Output Torque | 50N@M~1500N@M | 50N@M~3000N@M |
Movement range | 0~90° | 0~90°\0°~270°(Optional) |
Actuation time | 10second /15second /30second | 18S~112S |
Protective device | Overheating protection, overload protection | Built-in overheating protection, overload protection |
Protective device | -20ºC~+70ºC |
Manual operation | Operating handle | Mechanical clutch mechanism, match the handwheel operation |
Mechanical limit | Electrical and mechanical double limit | Two external adjustment bolts |
Protection grade | IP65\IP67 | IP65\IP67\IP68(Customizable) |
Explosion-proof grade | ExdII BT4 | ExdII BT4\ExdII CT6 |
Position measuring | Proportional control unit | potentiometer\Proportional control unit |
Drive motor | AC reversible motor | Squirrel cage induction motor |
Shell material | Aluminium alloy | Steel, aluminum alloy, aluminum bronze, polycarbonate |
External coatings | Dry powder, and epoxy polyester, it has strong corrosion function |
