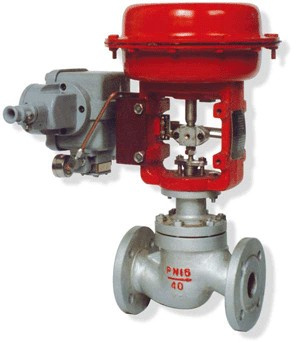

97-21000 pneumatic diaphragm single-seat control valve, we introduce the technology of American Masoneilan company, made up of 21000 series single-seat valve and pneumatic multi-spring actuator. Small size, light weight, good stability, small leakage. Widely used in petroleum, chemical, power station, light industry, textile, metallurgy for industrial processing automatic controlling
Valve body: SCPH2(WCB) SCPH21(WC6)
SCS14A(CF8M) ZG1Cr18Ni9Ti
Internal components: SUS304, SUS316, SUS403, 0Cr18Ni12Mo2Ti, 1Cr13
|
9 |
2 1 |
|
|
|
|
|
Actuator |
Valve body |
Valve spool |
Flow characteristics |
Valve seat |
Upper cover |
7. air off
8. air on |
21 |
0. No indication
1. follow periphery |
0. No indication
1. Straight line
0. Equal percentage |
0. No indication
4. Quick switch
5. Thread connection
6. Soft sealing |
No marked is standard
EB: extended
AB: heat sink |
