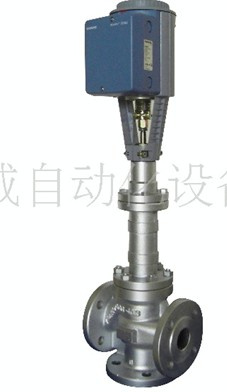

THINKTANK eletromtion minor-cabliber sleeve single-base valve reguating valve of high performance is inted to be used in high pressure differential occasions with liquid pressure difference exceeding 3Mpa, its solid valve core guide and sleeve can prevent the liquid from causing flash vaporization and cavitation, the valve body is of streamlineg channel with small loss caused by pressure drop, mass flow and wide adjustable range, the control valve leakage conform to ANSI B16.104 standard.
His series is suitable to the regulation which requires high precision during the flux of control liquid.
Electric single-base, dual-base and sleeve regulating valves are composed of ordinary DKZ series or imported electric actuator series and valve body whose valve core is single-base type, dual-base type or sleeve type
It can accomplish a lot of control ways, flow characteristic equal percentage and linearity
Parameters of automatic control valve
The material of valve body: Cast iron, cast steel, cast stainless steel and so on.
Pressure grade: 1.6Mpa, 4.0Mpa, 6.4Mpa
Connecting type: Flange coupling
Temperature range: Normal temperature -20---230 the thermal slug type -60---450
Operation form: Automatic open or close
Flow characteristic: Equal percentage, linearity
Leakage: Single-base valve: 0.01* rated Cv
Double-base valve, sleeve valve: 0.5%* rated Cv
|
DN(mm) |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
rated flow coefficient Kv |
8 |
12 |
20 |
32 |
50 |
80 |
120 |
200 |
280 |
450 |
|
PN MPa |
1.6 , 4.0 , 6.4 (normal temperature ) : 4.0 , 6.4 ( mesotherm type) |
|
medium temperature |
-20 ~ 200( normal temperature) : -40~ 450(mesotherm type ) |
|
flow characteristic |
linear,equal percentage |
|
body material |
welding high-temperature carbon stell cast steel GB/T12229-1989 ZG270-500 : JIS SCPH2 |
|
core, stem material |
SS 1Cr18Ni9Ti |
|
adjustable ratio |
30 : 1 |
|
adjustable spares |
Flameproof electrical-peumatic valve locator and handwheel devices, air filter relief-pressure valve |
