YAGPC is specialized in the production of pneumatic component for over 15 years. We have advanced production equipment and QC system to provide you with high-quality& low-cost products and We have various types of pneumatic components.
The types of Pneumatic Solenoid Valves we produce are as following:
1) 100 Series Solenoid Valve, Pneumatic Cintrol Valve
2) 200 Series Solenoid Valve, Pneumatic Cintrol Valve
3) 300 Series Solenoid Valve, Pneumatic Cintrol Valve
4) 400 Series Solenoid Valve, Pneumatic Cintrol Valve
5) 100-400 Series Base
6) LQ Series Solenoid Valve, Pneumatic Cintrol Valve
7) LVF, LVZ Series Solenoid Valve
8) 3V1 Series Three-position Two-way Solenoid Valve
9) 2V Series Two-position Two-way Solenoid Valve
10) 2W Series Solenoid Valve
11) 2W(Large Aperture) Series Solenoid Valve
12) 2L Series Solenoid Valve
13) JM Series Solenoid Valve
14) MSV Series Solenoid Valve
15) Hand-pull Valve
16) Hand-switching Valve
17) Hand-draw Valve
18) Foot Valve
19) Quick Exhaust Valve
20) Shuttle Valve
4V, 4A, 3V, 3A solenoid valve
1> Pneumatic control
2> 3 or 5 way
3> To control air
Model No:
4V110-M5, 4V120-M5, 4V130-M5, 4V110-06, 4V120-06, 4V130-06
4V210-06, 4V220-06, 4V230-06, 4V230-08
4V310-08, 4V320-8, 4V330-08.4V310-10, 4V320-10, , 4V330-10
4V410-15, 4V420-15, 4V430-15
4A110-M5, 4A120-M5, 4A130-M5, 4A110-06, 4A120-06, 4A130-06
4A210-06, 4A220-06, 4A230-06, 4A230-08
4A310-08, 4A320-8, 4A330-08.4A310-10, 4A320-10, , 4A330-10
4A410-15, 4A420-15, 4A430-15
4M110-M5, 4M120-M5, 4M130-M5, 4M110-06, 4M120-06, 4M130-06
4M210-06, 4M220-06, 4M230-06, 4M230-08
4M310-08, 4M320-8, 4M330-08.4M310-10, 4M320-10, , 4M330-10
4M410-15, 4M420-15, 4M430-15
|
Model |

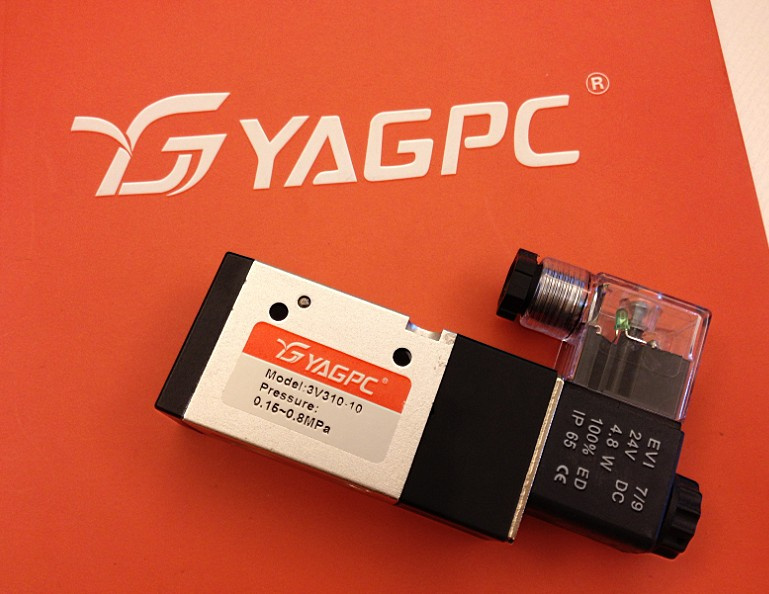

3V310-10 |
|
Position and way NO. |
Two-position Three-way |
|
Effective Section Area |
30mm 2 (CV=1.68) |
|
Joint Pipe Bore |
Air Inlet=Air outlet=G3 / 8” Exhaust=G1/4” |
|
Working Medium |
40 Micron Filtered Air |
|
Motion Pattern |
Inner Guide Type |
|
Working-Pressure |
0.15~0.8MPa |
|
Max. Pressure Ressistance |
1.2MPa |
|
Operating Temperature |
5~50 centigrade |
|
Voltage Range |
± 10% |
|
Power Consumption: AC |
AC: 4.5VA DC: 3W |
|
Insulation& Protection Class |
F Class. IP65 |
|
Wiring Form |
Lead Wrie or Connector type |
|
Highest Action Frequency |
5 Cycle/Sec |
|
Shortes Excitation Tim |
0.05 Second |
FENGHUA YAGUANG PNEUMATIC ELEMENT Co., Ltd. (YAGPC) was found in 1997 manufacturing the Pneumatic Device. Throughout the years, We support the best service and solution for our customer. We have sales distributors all over China.
We look forward to meeting your technology needs now and in the future.
