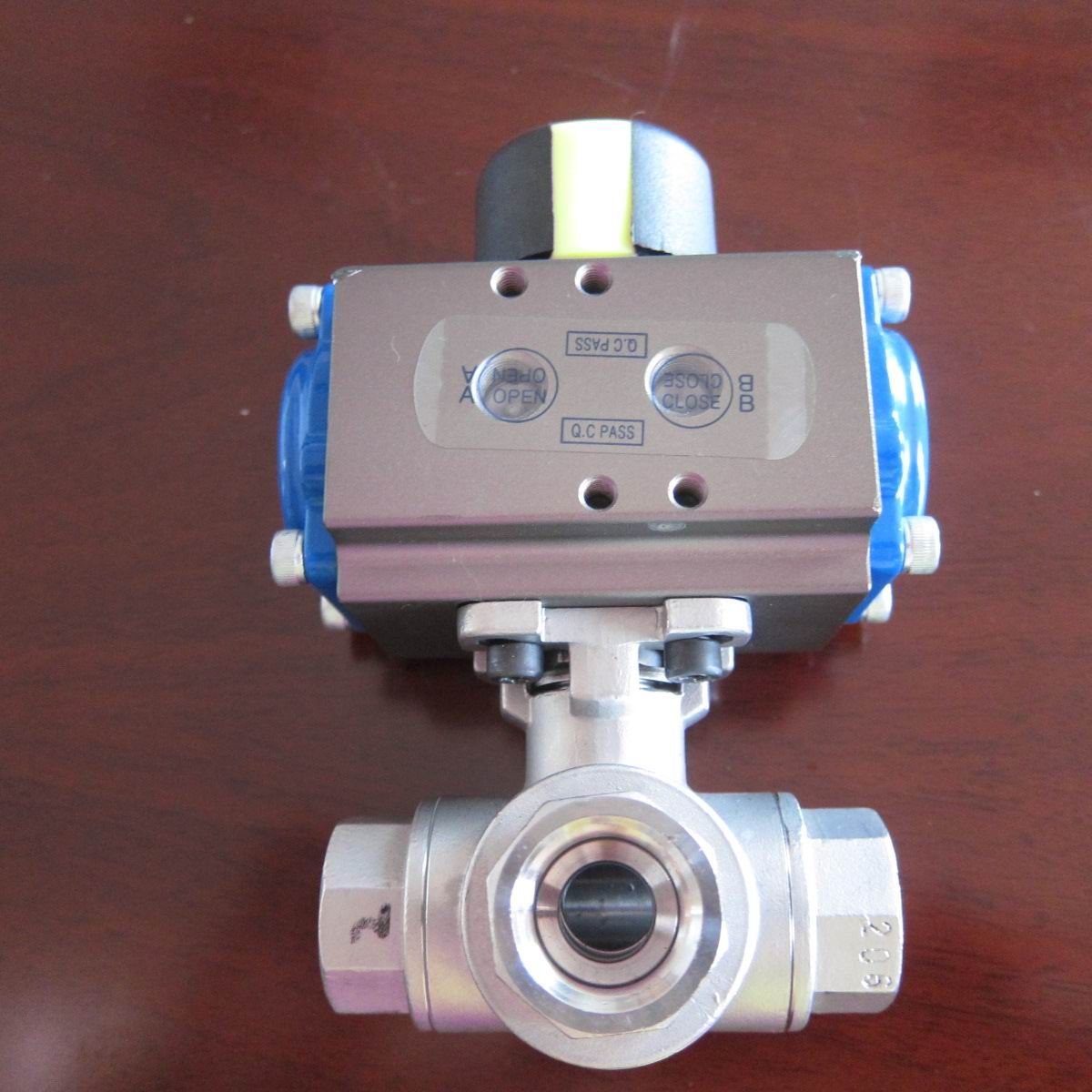

Pneumatic Stanless Steel Ball Valve
Valve material: Stainless steel SS304/316 CF8M/CF8, Investment casting method produced valve.
Pneumatic actor imported from Korean.
SIZE Actuator
(mm) C R K Threadedconnection
G T A L SW
DN10 40 50.5 27 211 3/8 12 119 68 27
50 60 33 124 131
DN15 40 50.5 27 111 1/ 15 119 68 27
50 60 33 124 131
DN20 50 60 33 128 3/4 16 136 75 32
DN25 50 60 33 136 1 17 145 90 40
169
63 75 41 162 211
90AL 112 57 210
213
90 106 55 211
DN32 63 75 41 174 1 1/4 21 187 116 50
229
231
90AL 112 57 220
90 106 55 223
DN40 63 75 41 175 1 1/ 21 187 116 56
230
90AL 112 57 22
231
90 106 55 223
DN50 63 75 41 183 2 22 201 138 69
244
90AL 112 57 232
247
90 106 55 232
DN65 90AL 112 57 262 2 1/ 26 282 178 85
90 106 55 265 285 178
125 148 74 302 320 178
DN80 125 148 74 313 3 27 372 210 100
Established in Qingdao, China in 1990, Qingdao Hengyong Valve Industrial has grown to become the Top manufacture of casted Stainless Steel Flanges and Stainless Steel Ball Valves in China. Now Hengyong Valve Industrial exported stainless steel flange and ball valve to 23 different countries.
Our Products Range include:
1. Stainless Steel Flanges: DIN/UNI/JIS/ASME/BS, Type include WN/BL/SO/PL/SW, size from 2" to 24".
2. Stainless Steel Valves: Manual or electric or pneumatic 1PC, 2PC, 3PC ball valves, globe valves, check valves, gate valves, Y strainers,
3. Stainless Steel Pipe Fittings: Quickly Coupling, Union, Camlocks and 150LBS fittings
4. Metal Castings from precision lost wax investment casting and Sand Casting process.
Our Production Capacity:
Flanges about 3000ton/annual, and Valves about 1000ton/annual.
In 2008, Qingdao Hengyong Valve Industrial was audited ISO9001-2008 Quality certification by TUV company.
For Further information pls contact.
