Pneumatic Straight Ball Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Sanitary straight ball valve
Application : The series ball valves are used to transfer controlling the material , Which extensively use to food , beverage processing and pharmacy chemical industry areas.
Connection: mode: Welding ,Clamp, Male and female ,Flange etc
Weldng connection:DIN11850-2 with 11850-1/SMS/3A./ISO series etc
Standard Design: Have different standard of valve series can supply for customers, they are the DIN standard series,ISO/IDF standard series,BS/RJT standard series,ASME/BPE etc.
The consitute elements of ball valve always included : one handle,one ball body with transfixion cavity,valve body,valvecentral spindle and spindle shaft seal.
The specification of ball valve series are welded ball valve ,clamped ball valve, threaded ball valve etc.
Working principle:
Through 90degree rotary handle ,drive the ball body which have transfixion cavity and precise manufacture,to open or close the valve ,reaching control the flow rate of medium.
Material : seal parts:stainless steel 304,stainless steel 316L
Seal:PTFE ,O type seal ring

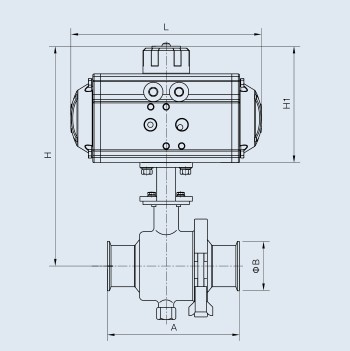

| DN-NO.RQ1256 | Size | A | B | H | H1 | L |
| DN15 | 95 | 50.5 | 166.5 | 89 | 140 |
| DN20 | 95 | 50.5 | 166.5 | 89 | 140 |
| DN25 | 120 | 50.5 | 166.5 | 89 | 140 |
| DN32 | 130 | 50.5 | 166.5 | 89 | 140 |
| DN40 | 140 | 50.5 | 186.0 | 105 | 159 |
| DN50 | 164 | 64.0 | 192.0 | 105 | 159 |
| DN65 | 190 | 77.5 | 197.0 | 105 | 159 |
| Prod Model: |
RQD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Seal: |
Tpfe |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Application: |
Water Industrial Usage |
| Connection Form: |
Clamped |
| Structure: |
Forging |
| Type: |
Straight Ball Valve |
