The series of ball valve is mainly used in industrial fields of gasoline, chemical, hydraulic, food and beverage, etc.
The ball valve can be operated by handle or by actuator automatically
The structure of the ball valve: One piece, Two pieces, Three piece and Flanged type, etc.
The Connection: Threaded, welded, clamped, flange etc.
Pressure: PN1.6, 2.5, 4.0, 6.4Mpa
Strength testing pressure: PT2.4, 3.8, 6.0, 9.6Mpa
Seat Testing Pressure(high pressure): 1.8, 2.8, 4.4, 7.1Mpa
Applicable media:

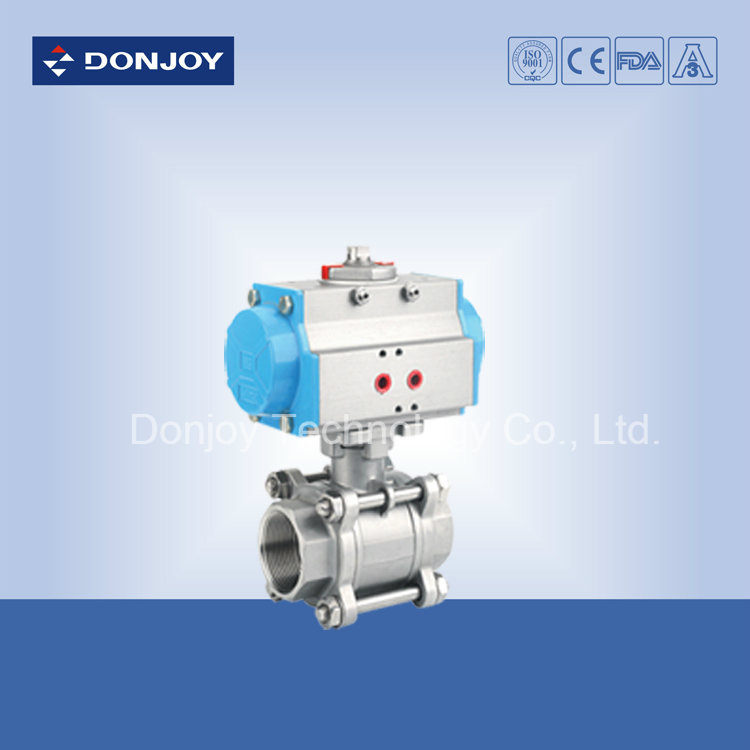

| Product Name: | Pneumatic 3pc Ball Valve |
| Valve Body Material: | CF8/CF8M |
| Seal Material: | PTFE |
| Max. Working Pressure: | PN16-PN64 |
| Max. Working Temperature: | -40-180 degree |
| Availably size: | DN15-DN100,1/2"-4" |
| Availably connection: | Female, Flange, Welded, Clamped |
| Availably standard: | AISI |
| Operated: | Handle/Pneumatic |
Donjoy built up in 1993, with registered capital RMB 55, 08 millions. We focus on developing high quality PID process controller, the valve positioner, the flow controller, the valve control unit, high purity process control valve, intelligent self-control valve, high pure pump, Cleaning technology, piping and pressure vessel safety technology, high pure tubing fitting and pipeline accessories. Donjoy's products and technoligy are widely used in biopharmaceutical, food, drink, wine and other industrial fields. Donjoy's innovation solutions meets growing demand in the industry of biopharmaceutical, food and beverage from the whold wold, special the emerging market.
Raw material, processing technology, welding technology, surface treatment from Donjoy have achieved advanced levels of domestic and foreign marekt. Donjoy producing according to ASME BPE, EHEDG, FDA and 3A standard, get certificate of PED-97/23/EC and MD-06/42/EC issued by TUV, 3A issued by 3A organization, TS licence and ISO9001: 2008.
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
Donjoy has been committed to major technological advances, is your trusted business partners!
Technological innovation, rapid development of the market and customer needs are the greatest challenges facing us today.
Faced with these challenges we are confident, because of highly professional products and technological innovation, we will meet the growing demard of market and customer with our better and better products.
