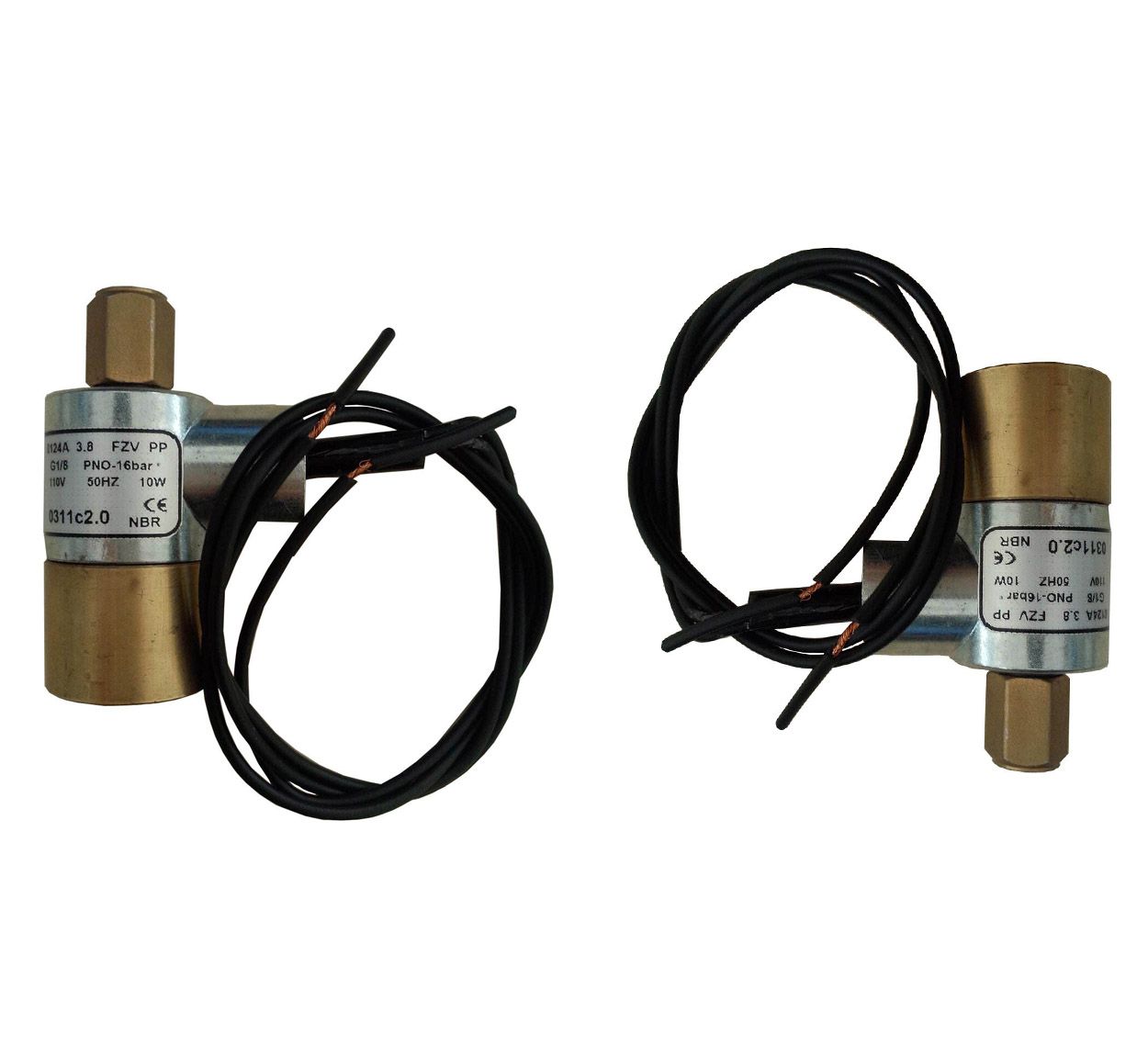

Compressor parts --- ODE solenoid valve
| Characteristic | 1.Pilot operated diaphragm structure with less power comsumption for long time working |
| 2.Applied to pressure system opened from 0.03 Mpa |
| 3.Life span can be over 1 million times |
| Medium | Air, water etc. |
| Temperature | NBR:-10°C to 80 °C |
| EPDM:-10°C to 120 °C |
| VITON:-10°C to 150 °C |
| Pressure | 0.03-1.6Mpa |
| Port size | 3/8'-1' |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 12,15,20,25mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ |
| Tolerance | ±10% |
| Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED |
| S91B,22VA(AC),17W(DC) IP65,100% ED |
| Special coils | Latching coil:DC6-24V as requested |
| Material | Body- brass or stainless steel |
| Seal- NBR,EPDM,VITON |
| Amature tube-stainless steel 304 |
| Plunger-stainless steel430F |
| Stop-stainless steel 430F |
| Springs-SS304 |
| Shading rings- stainless steel 304 |
FAQ:
1. What's Minimum Order Quantity of your air compressor part?
the MOQ is 1pc, need you pay for the delivery cost.
2. What's kind of your packaging for the air compressor part?
neutral packing or brand pack as your requirement
3. Could I get some samples? How could i pay the sample payment?
yes, we can provide sample, but not free.
payment: paypal, westunion ,TT
4. How long is your Delivery Lead Time ?
If there is stock, the lead time is about 2 WORKING DAYS after we get the payment, if need to be produced, it depens.
5. Could you Calculate the shipping cost for me?
Yes, we are honored to do that for you! Before the freight , please well let us know which seaport or airport near your place.
6. what's the delivery way?
shipping way: air freight, express, sea
Our services
24 hours a day, 7 days a week
1-stop purchasing
Cheap, fast and efficient
adequate stocks
provide install instruction and guide
| Business scope |
Mechanical Seal :
| Temperature Sensor | Pressure Sensor
|
| Maintenance Kits | Solenoid Valve | Thermostatic Valve
|
| Air intake | Wheel Gear
| Pressure Maintaining Valve |
| Air Filter | Oil Separator | Oil Filter
|
| Oil Level Indicator | Circuit Board Master Control | Air intake valve |
| Used air compressor | Air-end | Oil level indicator |
Spare parts PN list
Temperature Sensor P.N
1089057407,1089057444,1089057464,1089057401,1089057402,1089057403,1089057405,1089057406,1089057408,1089057441,1089057440,1089057416,1089057455 1089057551,108995800,39560628,37952355 39921705 39538079 39271609,38433546,85652535,42853243,37952439,100003018,A03740577,100010275 100003136 100003136 11507074 11190974 A98612-120 98612-122 A11507074 09Q060G1936 100002946 A10630674 A03740577 100010275
Controller Panel P.N
1900070001 1900070003 1900070004 1900070005 1900070007 1900070008
1900071101 1900071102 1900071103 1900071001 1900071011 1900071012
1900071002 1900071281 1900071292 1900071031 1900071032 1900520012
1900520011 1900520001 1900070105 1900071001 1900071011 1900071012
1900071002 1900071281 1900071292 1900071031 1900071032 1900070125
1900070122 1900070102 1900070103 23009848 39825815 92948884
39842786 22136444 23748593
Gear Set P.N
1622002300/2400 1622002500/2600 1622002700/2800 1622003500/3600
1622311067 & 1622311068 1622311025 & 1622311026 1622311027/28
1622311029/30 1622311033/34 1622311035/36 1622311037 1622311041/42
1622311043/44 1622311045/46 1622311049/50 1622311053/54 1622311055/56
1622311059/60 1622311063/64 1622311065/66 1614933000/1614933100
1614930000/1614930100 1614930800/0900 1614931000/1100 1614931200/1300
1614932200/2300 1614932400/2500 1614932600/2700 1614933000/3100
1614933200/3300 1614933600/3700 1614933400/ 1614933500 1622077023/24
1622077027/28 1613965000/5100 1613817400/818000 161389800/8100
1613898200/8300
Pressure Sensor P.N
1089958001 1089057511 1089057551 1089057541 1089057533 1089057573
1089057565 1089057535 1089057574 1089057564 1089057544 1089057578
1089057528 1089057520 1089057530 1089057554 1089057543 39413307
39428305 39875539 39877618 39929435 39853791 39853809 42852483
39883186 39921713 39853775 39853775 39853783 39875539
Cooler P.N
1613830901 1621700202 1621700302 39893003 54365945 1202973900
1613782202 1613782203
Air Filter P.N
1621054699 /1621574300 / 1614874700 /1613610500 /16147273 00/1622314200 /162365200 /1621054699
1621574300/1621054700/ 1621574200/1030097900/2906009200/2914931000/1613800400/1613740700/
2914930600/2903101200/2903101200......
Oil Filter P.N
1202626301/1202626301/1202626302/1202626203/1202626204/1202627302
1617703909/1617704111/1617704203/1617704201/1617704303/1617704301
1617704305/1617704104/2900058200/1619622700/2901196100/2901196300
89295976/42855429/42888214/39588470/39588777/99273906/39750732
Oil Separator P.N
2901194402/ 1622035101/1613901400/1612386900/1613750200/1622007900
1622051600/1613243300/1613688000/1613839700/1613839702/1622314000
2252631300/1614905400/1614642300/1622365600/54595442/39831888
39751391/92754688/39894597/42841247/39863865/39890660
Repair Kit PN
2901050300/2901021200/2901007700/2901050301/2901006800/1613235600
1619733300/1622375980/2901146400/1622375981/2901021100/1613814482
1613814400/250018-262/250019-444/250018-456/250018-262/2250116-697
Orther Valve P.N
1089062110/ 1089070202/1619733300/1619756000/ 1622369480/ 1202586903/
81335509/ 250017-280/ 22516025/ 22516025/ 39312905 /250038-666/250038-755
8829009-775/88290001-006/ 88290006-775/39141944
Hongkong Jiubei Industry Limited was established in 2000, located in Dongguan city Changan town - "China National Machinery and Hardware Mold town".
We are a Hi-Tech company specialized in research, development, manufacture and distribution of Air compressor spare parts. We provide used air compressor, used air compressor airend, air compressor valves, air compressor controllers, air compressor service kits, air compressor filters, air compressor coolers and so son, With our rich experience, professional technology and rigorous quality control, our products has been widely used in various brand air compressors, such as Atlas Copco, Hitachi, Sullair, Kobelco, Fusheng with good feedback and continuous orders from more than 2, 000 customers in domestic and oversea market.
Sticking on the principle of "Super quality, satisfactory service", we are striving hard to build the most complete variety platform of air compressors spares parts in China.
